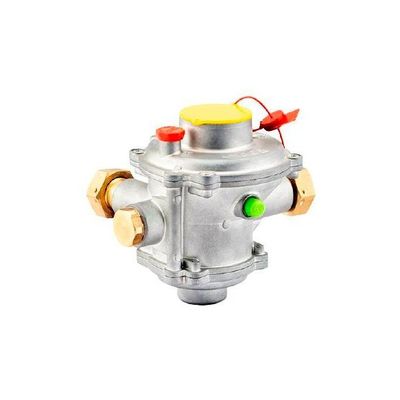

Eska - Model ERG-SX -Double Stage Gas Pressure Regulators
ESKA ERG-SX Series double stage gas pressure regulator is used on gas line to reduce inlet pressure to desired outlet pressure. It is suitable for both commercial and domestic use where it can be directly and easily installed to gas meters with high operational reliability and outlet pressure accuracy. The regulators are manufactured according to Ped Directive 2014/68/EU. The functional tests are performed according to EN334.
Most popular related searches
gas pressure regulator
pressure regulator
gas meter
corrosive gas
filter integrity
pressure reducer
relief valve
filter housing
- Natural gas regulator
- Residential Natural Gas Regulator
- Medium: Natural Gas, LPG and Non-Corrosive Gases
- Pressure Class: PN5
- Maximum inlet pressure: 5 bar
- Minimum inlet pressure: Depending on your request, can start as low as 0,5 bar.
- Outlet pressure range: 12 to 35mbar.
- Flow range: 6-10-15m3/h
- Operating temperature: -20... + 60°C (optional: -40... +60°C)
- Assembly: Vertical and Horizontal Position
- Filter: Included
ESKA ERG-SX Series gas pressure regulator body consists of:
- Valve housing
- Connections
- Filter
- Ventilation console
- Integrated security valves ( UPSO / Relief)
