Dymas - Model 24 -6 Channel 24 Bit Digital Data Acquisition Recorder

DYMAS 24 typical employing is dynamic monitoring of civil and industrial structures (as bridges, viaducts, chimneys, plants) for rock noise and movements caused by natural seismic events or generated during excavation or blasting.

DYMAS 24 is integrated with VIBROSOFT configuration, communication, processing and visualization software.

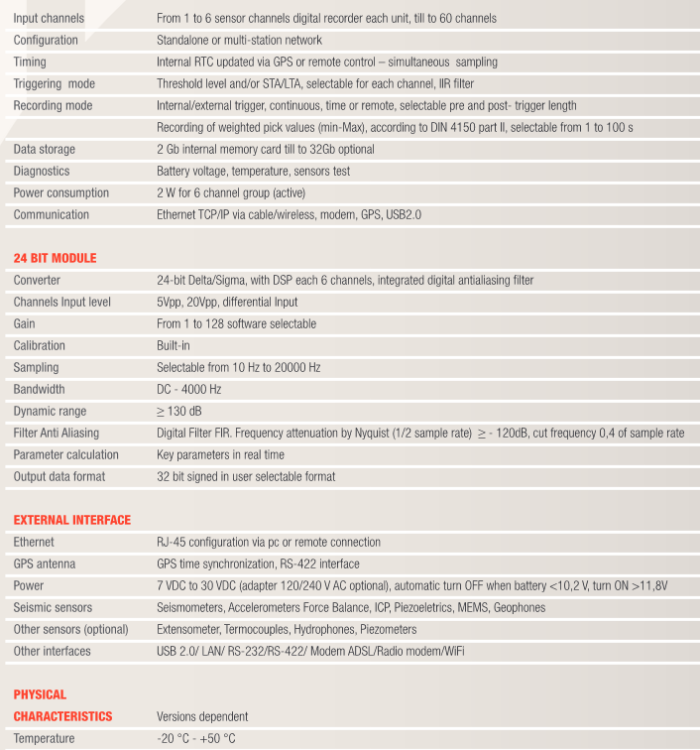

DYMAS 24 is a highly sophisticated 24 Bit acquisition system which is designed to provide a complete solution for seismic and accelero-metric monitoring. The high resolution and flexibility in using allows the system to operate as a receiver for microseismic signals, broad band and strong motion. The heart of the system consists of a 6-channel module that digitizes incoming signals and formats them to be stored in an internal SO since to 2 GB. Different configurations are available, in relation to the number of acquisition modules, type of input/output connectors, type of facility and operating mode. Depending on the chosen configuration, the system can be contained in single IP65 box with military type connectors or in IP67 cabinets.

• Rugged, small, low power
• From 3 to 60 channels
• 24 bit multichannel sampling
• 10 hz-20 khz sample rate
• Dynamics 130 db
• Bandwidth dc- 4 khz
• Continuous and/or triggered recording
• 2 gb internal SD memory for 6 channels group
• Geophones and/or accelerometers connection
