SolGeo Srl products

DYMAS 24 high resolution dynamic acquisition system can operate as vibrational or microseismic unit in standalone or multi-station configuration. They fully respect international standards DIN4150-3, DIN45669-1 e UNI9916 requirements.

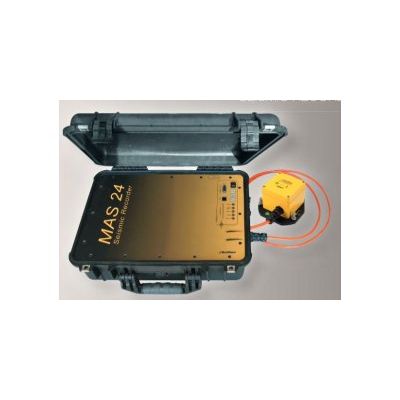

The high resolution integrated unit (24-bit sampling and dynamic  130 db) 3 or 6 channels (up to 6 rnonoaxial or 2 Triaxial accelerom-eters in version 6.SD.) can operate as a strong motion vibration acquisition unit or micro seismic recorder fulfilling international standards DIN45669 DIN4150-3-1 and UNI9916. Its characteristics make it suitable for monitoring of civil and industrial structures or for natural or anthropic seismic monitoring.

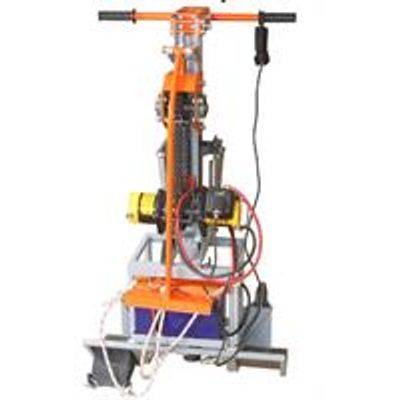

Accelerated weight drop (AWD) sources are designed for effective and advanced excitation of seismic signal of increased power during seismic studies on land.

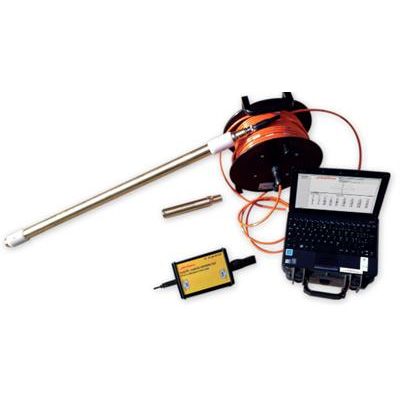

The new inclinometer carbon probe allows to perform a set of measurements of direction and inclination of boreholes in 3D space. The new carbon fiber body makes it light and easy to handle in difficult contests, for both horizontal and vertical boreholes, till 30mm diameter width. Instantaneous visualization of results acquired along borehole, showing its altimetric and planimetric trend with respect to the initial position for a fast and accurate crossing borehole positioning.

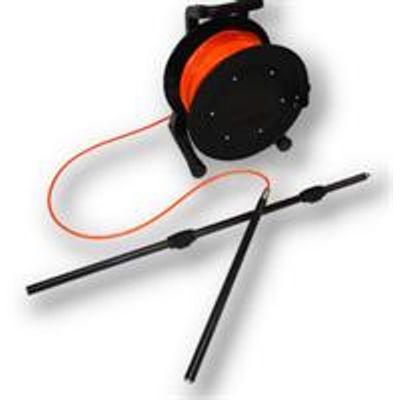

The new inclinometer probe INCUS DH, designed by Solgeo, allows to perform a 3D borehole deviation survey; it is equipped with n. 3 magnetometrk and an n.3 accelerometric sensors. In case of iron casing which makes impossible the right working of the magnetometric sensors, the system is provided with a set of aluminium rod that allows to drive the probe inside the BH. INCLIS-DH is connected to the Pc trough a USB Junction box which provides the power supply and the data transfer. The software Saldino allows an immediate restitution of the results in graphical and numeric form.

Seismic guns are used for efficient and safe waves` generation on logged areas, water-land transition zones and water areas.

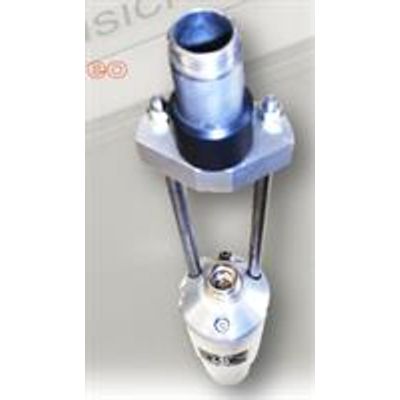

DDH-Geo: the new triaxial borehole geophone, designed to seismic applications as Down-Hole survey. Provided with a fast-locking system with oriented aluminum poles, it allows to perform double setting configuration aimed to differential travel time processing. It also guarantees an high accuracy and fulfilling of international standard, ASTM D7400-08.

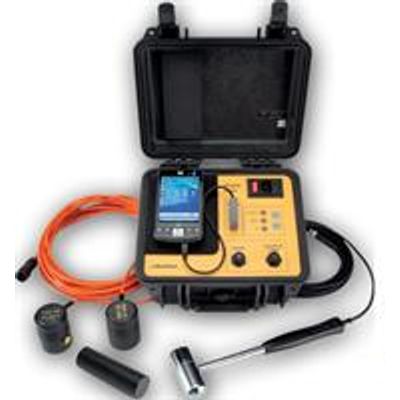

Solgeo CMS ultrasonic system is able to perfor measures of compressional P waves time propagation through different materials, with high accuracy by allowing to visualize on a palmtop or tablet PC the waveform of signal acquired. It is made up of an acquisition unit and different piezoelectric sensors among which high power piezoeletrical transmitter (> 1.6 kV) and a triggered hammer. It means extremely wide range of use, even on bad quality materials. High sensitivity of piezoelectric receivers, frequency 55 kHz (optionally 80-20 kHz), allows very high accuracy measurements both on laboratory and on site surveys. The palmtop, working with a Bluetooth technology, can perform measurements within 30 m far from the acquisition unit. CMS is provided with DATASONIC software package for downloading, processing and data editing

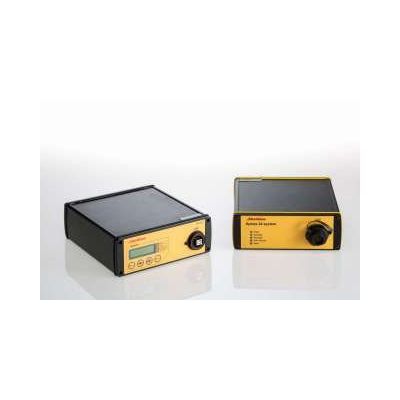

Digital acquisition Dymas 24 Master-V multi-channel seismic acquisition for short and long-term monitoring of civil, industrial and monumental works. DYMAS24 MASTER-V is a 6-channel acquisition system configurable for event or continuous recordings with all the necessary functionalities to manage single dynamic sensors or complex networks in seismic, microseismic, dynamic monitoring for permanent or temporary installations in dams, buildings or seismic stations. The acquirer can be supplied with the accessories already pre-wired, inside a single wall or base cabinet.

Digital acquisition Dymas 24 Alben multi-channel (up to 30 channels) designed specifically for fixed installations for long-term monitoring of seismic events on civil, industrial and monumental works. The DYMAS24-ALBEN is a multi-channel acquisition system suitable for long-term monitoring of dams and structures in general where it is required the installation of many dynamic sensors, accelerometer or velocimeters.
