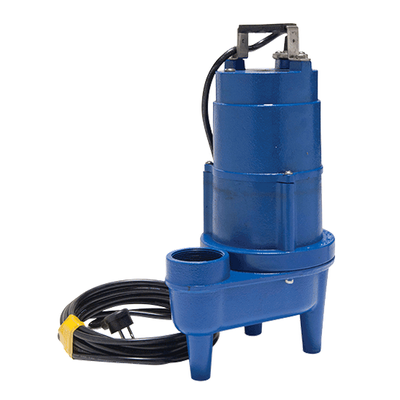

Milwaukee - Model MP-S5 -Effluent Pump
Piggy-back switch design. Pump can be operated manually by overriding the switch. High efficient motor with upper and lower ball bearings. Runs cooler and lasts longer. Cast Iron Vortex impeller, helps prevent clogging. Sealed entry replaceable power cord. Easy to replace in the field. Prevents water from entering motor housing in the event of a cut power cord.
Most popular related searches
sump and sewage pump
lift station
septic system
sewage pump
effluent pumping
effluent pump
dewatering system
sewage sump pump
sewage pump design
lift station system
- Basements, Dewatering, Septic systems, Lift Stations, Truck Docks.

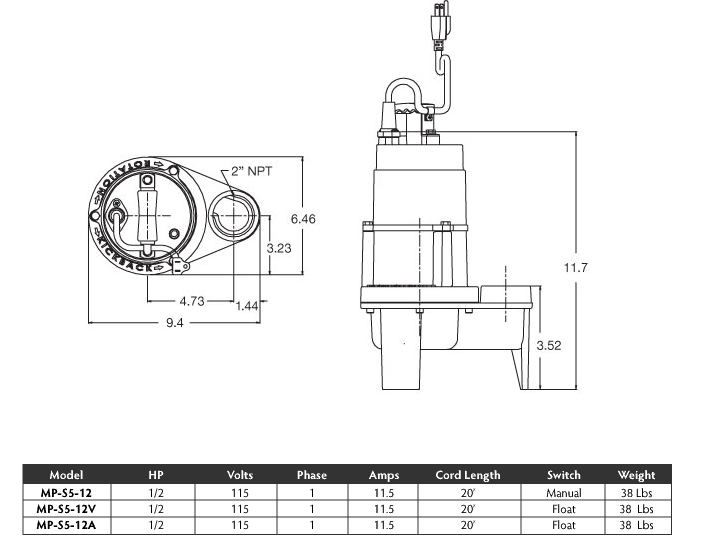

- Discharge: 2" NPT. Vertical Standard
- Solids: 2"
- Liquid Temperature: 140ºF (Intermittent) 77ºF (Continuous)
- Motor Housing: Cast Iron
- Volute: Cast Iron
- Seal Plate: Cast Iron
- Impeller: Cast Iron, 10 vane Vortex, Dynamically Balanced
- Shaft: Stainless Steel
- Shaft Seal: Carbon - Ceramic, John Crane Type 21
- Bearing(Upper & Lower): Single Row, Ball, Lubricated
- Hardware: 300 Series, Stainless Steel
- Square Rings: Buna-N
- Cord: 20 Ft. (6mts. long with quick disconnect cord with plug for effective sealing)
- Motor (Single Phase): 1/2HP, 3450 RPM, 60 Hz, Oil Filled, NEMA L includes motor overload protection, Permanent split capacitor, Class B.

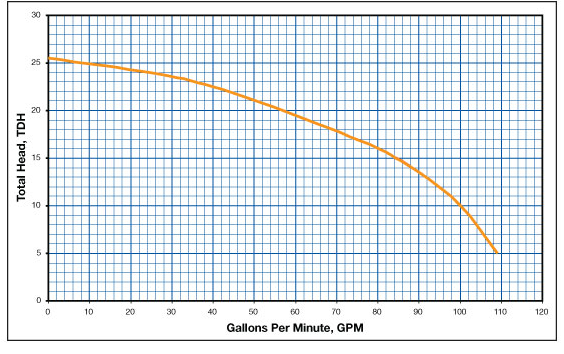

- Capacity: Up to 115 GPM
- Shut Off Head: 25 Ft./10.83 PSI
- Minimum Head: 5 Ft./2 PSI
