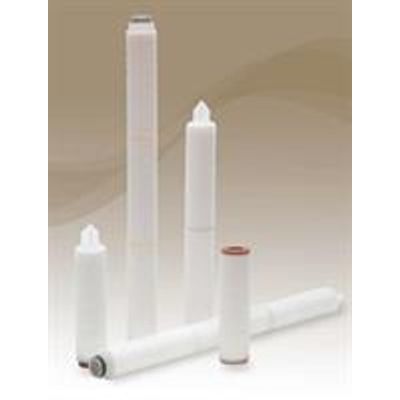

Shelco MicroVantage - Model MAS-E Series -Electronic Grade Polyethersulfone Membrane Filter Cartridges
FromShelco Filters
Polyethersulfone Absolute Rated Membrane Filter Cartridges for Ultra Pure Water Filter Applications. Polyethersulfone membrane filter cartridges for maximum throughput and service life in microelectronics applications. Absolute retention from 0.03 to 0.65 microns. Low extractables, quick rinse up to 18 megohm resistivity. Flushed and fully integrity tested in Class 10,000 clean room to ensure highest purity.. Meets applicable CFR criteria and USP Class VI Biological Test for plastics. Suitable for steam or autoclave sterilization and hot water or chemical sanitization.
Most popular related searches
polyethersulfone membrane filtration cartridge
membrane filtration cartridge
filter cartridge
membrane filtration
membrane cartridge filter
ultrapure water filtration
filter membrane
biological testing
cleanroom environment
ultrapure water
- Absolute retention ratings from 0.03 to 0.65 microns
- 7.2 square feet (0.67 m2) of media surface area per ten inch length for optimal performance
- Fully integrity tested to ensure reliable performance in critical applications
- 100% flushed with 18 megohm DI water to less than 5 ppb TOC
- Rapid rinse-up to 18 megohm resistivity and low extractables for use in ultrapure water
- Manufactured in a Class 10,000 Clean Room environment for high purity
- Rigid, molded cage protects pleated media and strengthens structural stability
- Complies with Food & Drug Administration’s CFR criteria for food & beverage contact
- Meets USP Class VI Biological Test for plastics
- Available in standard lengths and end cap configurations to fit most filter housings
- Produced up to 40 inches in length (10 inch modules)
- Semiconductor
- Microelectronics
- Process Water
- DI Water
- RO Pre/Post Filtration
- Water & Wastewater
- Pore Sizes 0.03, 0.1, 0.2, 0.45, 0.65 microns absolute retention
- Nominal Lengths 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter 2.67" (6.78 cm)
- Inside Diameter 1.0" (2.54 cm)
- Media Surface Area 7.2 sq.ft. (0.67 m2) per 10 inches filter length
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)
- Materials of Construction
- Filter Media: Polyethersulfone
- Outer Cage Polypropylene
- Inner Core: Polypropylene
- End caps: Polypropylene
- Maximum Operating Temperature 176°F ( 80°C)
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Maximum Differential (Collapse) Pressure
- 75 psid @ 70°F (5.2 bar @21°C), 40 psid @176°F (2.8 bar @ 80°C)
- Sanitization and Sterilization
- Hot water at 175°F (80°C) at 5 psid for 30 minutes
- In-line steam at 257°F (125°C) @ 1 psid (0.07 bar) for 30 minutes
- Autoclavable at 257°F (125°C) for 30 minutes
- FDA and USP Compliance
- All filters are manufactured of virgin polypropylene materials with no additives or other manufacturing agents. All polypropylene materials comply with the requirements of Food and Drug Administration Title 21 of The Code of Federal Regulations 174.5, 177.1520 and 177.1630. All components meet current USP Class VI biological tests for plastics
