Euromixers - Static Mixers

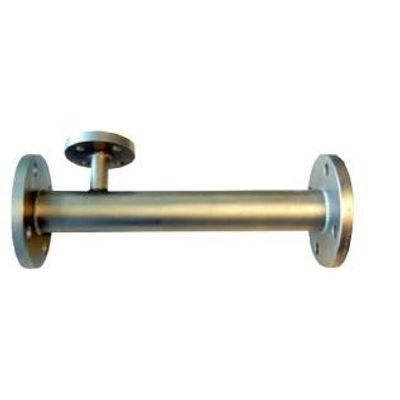

Static Mixers - available from stock
The most popular sizes of static mixers manufactured in stainless steel or polypropylene are available from stock on short delivery.

Principle of operation
Flow through the static mixer element is diverted into two separate streams- Optimization of the profile induces equal radial and axial flow. The helix pitch creates a rotation of the fluid, by which the fluid flows from the outside to the inside and reverse. The difference in velocity that occurs creates a shearing of the fluids.

After one rotation through the static mixer element a second diversion takes place and simultaneously a reverse of the succeeding rotation in the next mixing element occurs. As the number of streams or layers increases, the layer thickness decreases- After only 20 rotations in a 50mm diameter Static mixer, mixing at molecular level is achieved- 20 diversions of the fluid creates 220 separate layers, each 0-05 micron thick.

Static Mixers & Heat Exchangers - Bespoke solutions

Bespoke Static Mixers & Heat Exchangers can be designed and manufactured to meet your specific process requirements.
All of our new products are designed using the most advanced CAD 3D modelling systems by our team of experienced application and CAD design engineers.

• General chemicals - agric-chemicals, paint, slurries.
• Polymers - polyesters, nylons, ethylenes, silicones adhesives, sealants.
• Food & Beverages - sauces, chocolates, dairy products,
• salad dressing, sugar syrups.
• Energy - petrochemicals, fuel oil.
• Pulp & Paper - Kraft soaps, black liquor, oils.
• Waste water treatment applications.
