Kurz - Model 2443 -Expandable Probe Portable Flow Meter

FromKurz Instruments, Inc.

SHARE

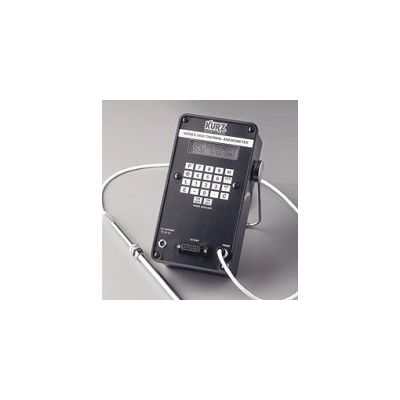

The Model 2443 Portable Air Velocity Meter uses the Metal-Clad `MC` sensor. It is designed to be used in industrial ventilation and process applications in which a small, rugged sensor is required. Most applications are for velocity traverse in small to moderately sized pipes and ducts. The sensor support is 3/8` diameter, 13` long with a probe shield which can be reversed to be used as a probe extender.

Most popular related searches

portable air velocity monitoring

portable air velocity

air velocity monitoring

portable flow meter

air flow monitoring

flow calibration

Easy-to-use menu for display and set-up with HELP screens.
Two-line 16 character, back-lit LCD with twenty button keypad.
User selected scrolling display.
Twenty-four hour clock/calendar, Year 2000 compliance (four digit year).
Two optically isolated loop-powered 4-20 mA outputs. User selected for velocity, flow rate or temperature (optional).
1500 Point Data Memory for recording traverses and other measurements.
User selected English or Metric units (SFPM. SCFM. SCFH, PPM, PPH, `F; SMPS, SLPM, SCMH, KGM,KGH.*C).
Multi-Point calibration correction factors for Flow and Temperature.
User-entered METER ID Numbers.
User-entered flow area.
User selected low velocity cut-off.
User selected Reference Conditions (STP).
User selected digital time constants for each METER.
Built-in flow totalizers and elapsed time.
User Access Code.
User selected RS-232C or RS-485 Serial port for terminal operation (optional).
CE Compliance meeting the European Community requirements for EMI emissions and immunity.
Configuration upload/download using a PC.
Velocity/Temperature/Mapping (VTM) for wide ranging, process velocity and temperature (optional).
Nickel-Metal-Hydride 4.5 AH High Performance battery.
Battery Charger, 100-240 VAC. 50/60 Hz.
Exceptional Temperature Compensation.
Flash EEPROM program for user firmware upgrades.
Velocity range to 12.000 SFPM.
Temperature rating of 200*C.
Pressure rating of 300 PSIG.
Rugged carrying case.
Dirt Insensitive.
Fastest response to temperature and velocity changes available.
Attitude insensitive.
Sensor lead length independent.
All components pass an extensive burn-in test for high reliability.
Optional Modbus local area network with a read-only control set (Trademark of Square D Company).
Electronics operating temperature range of -25`C to +65`C, non-condensing.
Excellent low velocity sensitivity.
.25% Repeatability.
Accuracy of ±3% Reading plus 20 SFPM temperature range.
Rugged, strong, dependable.
Internal and External Data Logging.

Combustion Air Velocity and Flow Calibrations.
Duct, Stack and Pipe Velocity Traverses.
General Purpose Air Flow Measurements.
Research and Development.
HVAC Supply and Return Ducts. Grills and Diffusers.
Flow Balancing
OSHA
Clean Rooms
Fume Hoods
