Flamingo - Sampling Probe

SAMPLING CYCLE

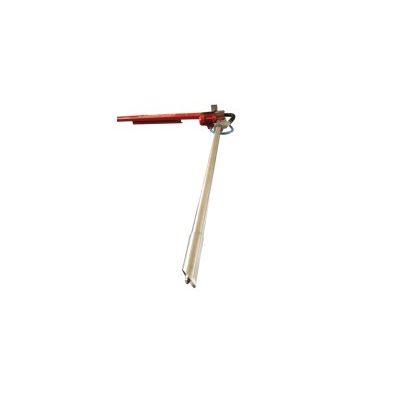

1. Sampling probe
2. Arm extension piston
3. Main column
4. Product suction tube
5. Suction unit
6. Delivery hopper
7. Electrical panel

SAMPLING CYCLE

• The sampling probe goes down to the desired depth.
• At the beginning of the descent the suction unit stats automatically.
• Once reached the bottom of the trailer the probe ascends to the topmost position.
• The probe waits until the suction unit switches off automatically.
• The tubes are emptied after every sampling cycle.
• The machine is now ready to begin the next cycle.
• The duration of the suction unit operation can be regulated in order to set up the right quantity of product sampled.

Note: if the automatic button is pressed at the end of the descent phase, the telescopic arm automatically returns to the topmost position and rotates to the rest position.

OPTIONALS/ADVANTAGES

OPTIONALS

• video surveillance system
• color Monitor 17” or 19”
• day/night vision with infra-red rays technology
• protection cas
• soundproof iron case white painted RAL 9010
• remote control with 12 channels
• it can be placed up to 40 meters from the laboratory

ADVANTAGES

• homogeneous sample taken thanks to the respecting of the European directives
• NON-PNEUMATIC
• fluent movement of the arm thanks to the oil-hydraulic system
• self-limitation of ruptures in case of movement of the truck
• one single operator required for the entire sampling cycle
• possibility of regulating the quantity of product of the sample
• flamingo is delivered pre-assembled so it is easy to assemble it
