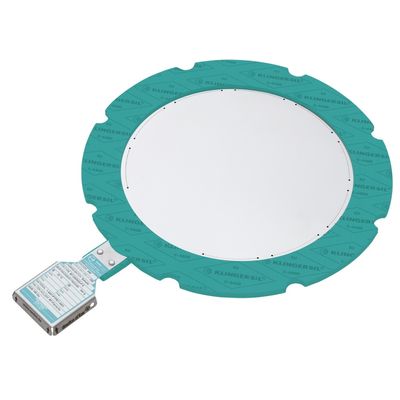

Rembe - Model FRD -Flat Rupture Disc

SHARE

Fragmentation - free opening across the full width of the vent. This rupture disc is designed to work at standard operating ratios of up to 50 % of the min. response pressure. It is installed directly between flanges and due to its half holes is suitable for all flange systems. A wide range of materials can be used as seals.

Most popular related searches

gas treatment plant

separation plant

For protection against overpressure and vacuum, e.g. in storage vessels and low pressure systems. Also suitable as a secondary safety device alongside breather valves.

Requires less space than safety valves due to the lower installation height.
Available for all flanges and in any nominal width.
No holder required for installation.

chemical industry
oil and gas separation and treatment
petrochemical plants
power plants
process vessels
refineries
silo

Industries

aerospace
brewery
food
oil and gas industry
pharmaceutical industry
