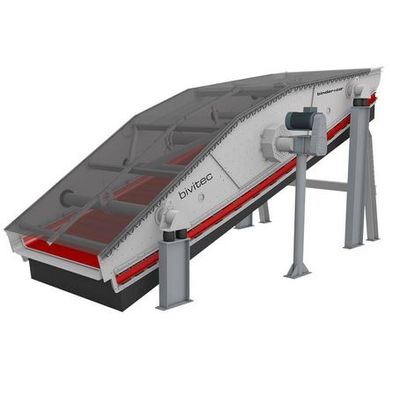

Binder - Model BIVITEC -Flip Flow Screen
The BIVITEC flip flow screen comes into its own when conventional screening technology starts to be inefficient and uneconomical. Particularly challenging tasks are solved in a simple and efficient way. The BIVITEC flip flow screen ensures selective screening of bulk materials which are difficult to screen.
With the help of resonance, a driving mechanism provides two vibratory movements in which the flexible polyurethane mats are expanded and compressed in turns, and the hard-to-screen product is separated at high acceleration. The dynamically agitated screen mats thus remain unobstructed and allow efficient screening.
Screening is an important step in the processing of bulk materials. Next to conventional screens, such as circular vibrating screens and linear vibrating screens, Binder+Co also supplies screens for especially difficult requirements.
With the BIVITEC e+ flip flow screen,your operating costs are low
Thanks to its light construction the BIVITEC e+ uses only very little energy. This protects the environment and keeps costs down. Further investment is low, since a retrofitted BIVITEC e+can use existing infrastructure. At the same time you benefit from all the advantages of the BIVITEC flip flow screen! See the infobox on these advantages of the BIVITEC e+.
- Wear to the sides of the screen is prevented by the ox-horn system (laterally raised screen panels).
- Screw less fastening system of screen panels allows them to be replaced fast.
- Optimum adjustment to the task in hand by simply changing the vibration parameters.
- Optimum side sealing by means of the ox-horn system avoids loss of material.
- Optional monitoring of bearing and amplitudes for coordination and planning of maintenance intervals
- Difficult screening tasks in all weather conditions
- Moist screening
- Wet screening
- Dry screening
- Number of screen decks: 1 - 4
- Effective screen width (m): 0,6 - 3,5
- Effective screen length (m): 2,5 - 12,0
- Screen area (m²)/deck: 1,5 - 42,0
- Cut points (mm): 0,063 - 90,0
