Flow Computer Units
The FCU 200/400 (SensyCal) is a universal measurement computer designed for industrial process signal monitoring and logging. FCU200/400 (SensyCal) combines modern communication technology with sound know-how gained through years of field metrology experience. A high-resolution multi-line graphic display indicates all physical and electrical process variables and device data, logged data and key dates. The communication with SensyCal is possible by MBUS, MODBUS and PROFIBUS (through converters).
The FCU200-T (SensyCal T) is a two-channel energy, mass flow and volume counter. The device is designed to convert either direct current to a proportional pulse frequency or a proportional pulse frequency to a direct current.
The FCU200-W (SensyCal W) is designed for determining heat balances.It is used for recording heat, cold or flow rates of liquids (water, brine, Oil, etc.) in the field of remote heating systems or for calibrated accounting for hot water systems. The calculator can be used with all marketable flow meters, ultrasound meters, swirl meters, MID, vortex flow meter, orifices, etc. It is not only the optimal solution for power plants and chemical plants, but also for heating and air conditioning and for the pharmaceutical industry.
The FCU400-G (SensyCal G) is a Gas flow calculation and gas accounting measurement. The calculator is used together with all marketable flow meters, e.g. Vortex & swirl meters, ultrasound meters, orifices, etc. transmitting a pulse, frequency or current signal.The split range procedure as well as compressibility factor, flow coefficient and expansion rate correction are possible with the standard program for orifice measurement. Graphic display with background light.The key day function, data logger and the MBUS, MODBUS and Profibus (over converter) communications are for further processing.

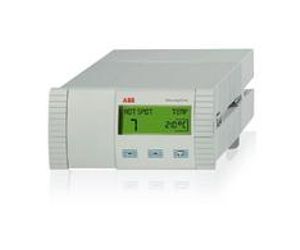

The FCU400-IR (SensyCal IR) Is a complete system for contactless temperature monitoring of contact points and power switches in MV switchgear.The contact resistance at the contact points between the conductor rails and power switches may increase due to loose screws or corrosion. As s result, power will be converted to heat (power dissipation), and the system may be damaged. Temperature monitoring with SensyCal IR is the solution. Continuous temperature monitoring of live parts, Monitoring of up to 12 hot spots in a switchgear with only one system, Alarm output, analog output, MBUS, MODBUS, locally display, No PVC cables used, All parts completely shielded against EMI/RFI, are a few product feature
The FCU400-P (SensyCal P) is a Signal combination, e.g. high precision T measurement, summation, etc.High-precision differential temperature measurement is the basis for heat balances used for further process optimization. The system consists of a SensyCal computer and two high-quality, high-precision paired PT100 sensors.If required the system can be calibrated and certified in our in-house DKD calibration lab.
The FCU400 S (SensyCal S) is a steam computer that can be used to determine thermal output of boiler systems and branch lines by calculating mass flow and thermal balance and for fiscal metering purposes. It is designed for superheated or saturated steam with or without condensate return, as flow computer and/or caloric energy computer.
