Skim-pak - Model 11800-DH -Flow - Control and Floating Decanter Systems
FromSkim-pak

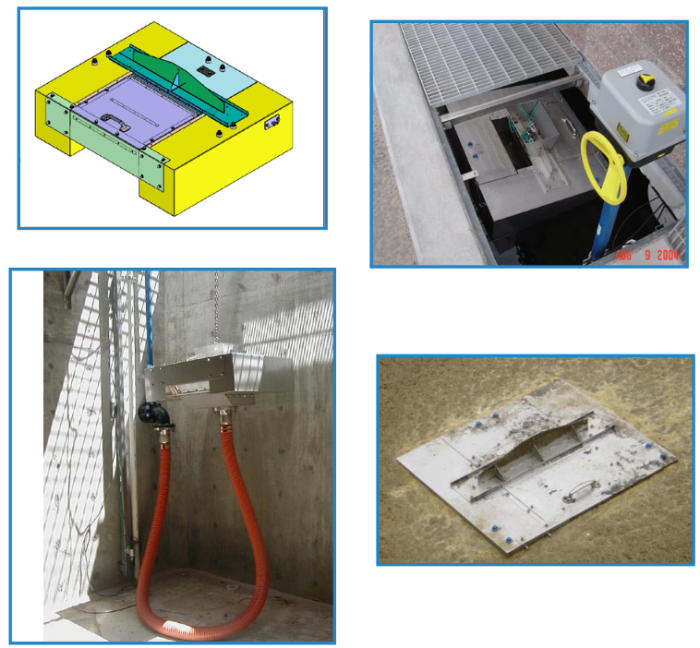

The 11800-DH has flow-controlled weirs with adjustable flow rate capabilities. The standard flow rate is 3 cubic meters per minute per meter of weir. The 11800-DH has 0.5 meters of total weir, and therefore is normally operated at a flow rate 1.4 m3/min, 370 gal/ min. Maximin flow rate is 500gpm. The 11800-DH excludes solid during the aeration cycle. Installation options include an articulating pipe swing arm or flexible hose deployment. The system can be gravity drained or pumped. Deployment is based on site-specific conditions.
Most popular related searches
floating decanter
flow control
sequencing batch reactor
floating decanter system
water treatment modeling
decantation
decanter
weir flow
gravity draining
gravity drain
- Flow Control Weirs
- Floating tanks with internal ballast tanks
- Integral lifting brackets
- Foam barrier
- Locking scum door
- Service doors
- Operation requires no solenoids or other electrical mechanical actuators
- There are no springs or spare parts required

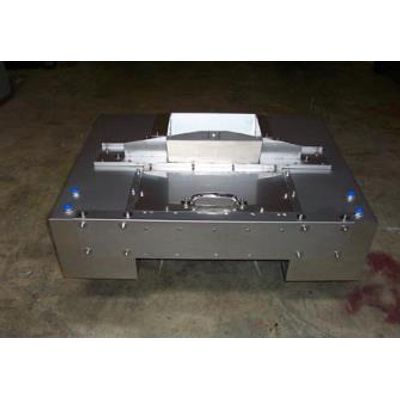

The model 11800-DH is a floating decanter for the removal of supernatant in Sequencing Batch Reactors (SBR), flocculants tanks and other water treatment
Model 11800-DH

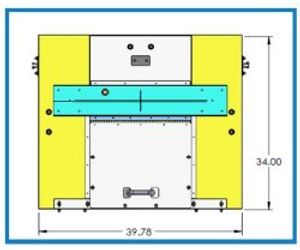

- Dimensions: 34 x 60 x 20in
- Weight: 160lbs
- Material: 304 Stainless
- Port Size: 4in
- Flow Rate: 370 GPM / 1.4 m3PM
- Higher flow rates achieved with multiple heads.
- 304/316 Stainless Steel Construction, Sump, and Lifting Bracket 12 gage; Float and Weir 18 gage
- Flow rate set to a desired rate of decanting normally 2.8 cubic meters per minute per meter of weir
- ANSI Flange Bolt Pattern Standard
- Flow rate assumes at least a 18in head
- Dimensions and specifics subject to change without notice
