Skim-pak - Model 11840-DH -Flow - Control and Floating Decanter Systems
FromSkim-pak
The 11840-DH has flow-controlled weirs with adjustable flow rate capabilities. The standard flow rate is 3 cubic meters per minute per meter of weir. The 11840-DH has 4 meters of total weir, and therefore is normally operated at a flow rate 11.2 m3/min, 2958gal/ min. Maximin flow rate is 4,000gpm. The 11840-DH excludes solid during the aeration cycle. Installation options include an articulating pipe swing arm or sphion deployment. The system can be gravity drained or pumped. Deployment is based on site-specific conditions.
Most popular related searches
floating decanter
flow control
sequencing batch reactor
floating decanter system
decantation
decanter
weir flow
gravity draining
gravity drain
flocculation tank
This model includes:
- Flow Control Weirs
- Floating tanks with internal ballast tanks
- Integral lifting brackets
- Foam barrier
- Locking scum door
- Service doors
- Operation requires no solenoids or other electrical mechanical actuators
- There are no springs or spare parts required

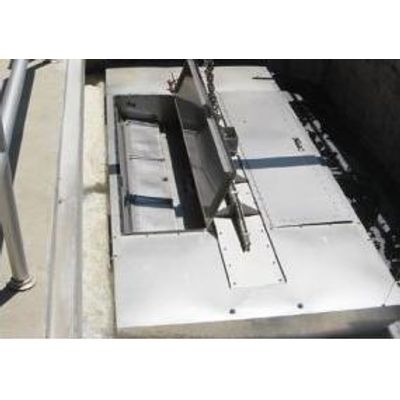

The model 11840-DH is a floating decanter for the removal of supernatant in Sequencing Batch Reactors (SBR), flocculants tanks and other water treatment

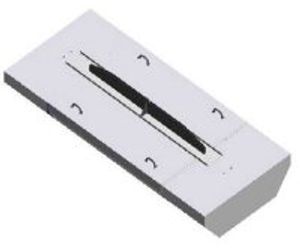

Model 11840-DH

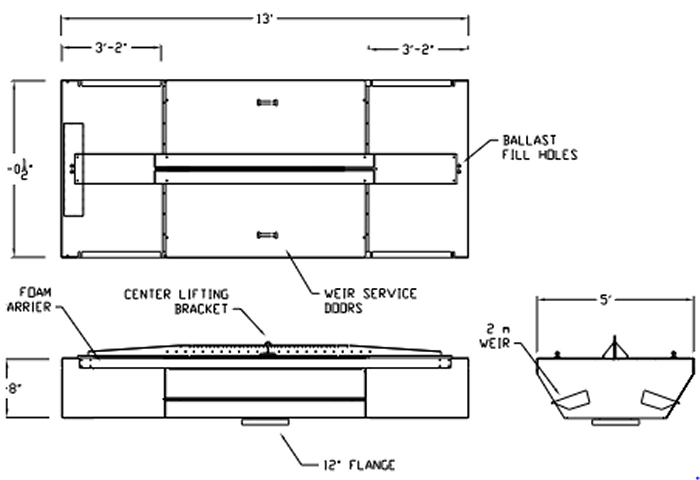

- Dimensions: 156 x 60 x 20in
- Weight: 680lbs
- Material: 304/316 Stainless
- Port Size: 12in
- Flow Rate: 2958 GPM / 11.23m3PM
- Higher flow rates achieved with multiple heads.
- 304/316 Stainless Steel Construction, Sump, and Lifting Bracket 12 gage; Float and Weir 18 gage
- Flow rate set to a desired rate of decanting normally 2.8 cubic meters per minute per meter of weir
- ANSI Flange Bolt Pattern Standard
- Flow rate assumes at least a 18in head
- Dimensions and specifics subject to change without notice
