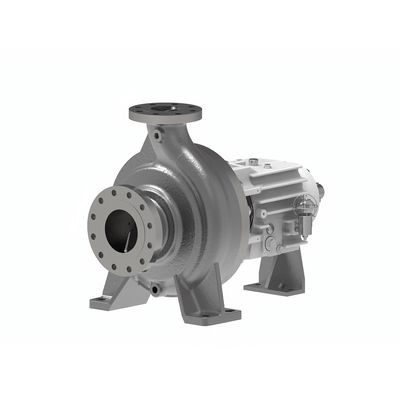

Apollo - Model OH1 - KRP -Foot-Mounted, Single-Stage Overhung Pumps
Foot-mounted, single-stage overhung pumps in radial-split design. The pump meets all requirements of API 610 and ISO 5199. The back-pull-out version in connection with demountable coupling (volute casing and motor remain in initial position) allows simple maintenance. Exchangeable wear and guide rings enable easy maintenance and cost reduction.
Most popular related searches
overhung process pump
volute casing pump
end suction pump
suction pump
process pump
bearing lubrication
pipe lubricant
vertical pump
chromium
KRP
- Q (m³/h): 2800
- H (m): 250
- P (bar): 25 / 35
- T (° C): +150
End-suction pumps of the KRP series are applied in process engineering plants to solve sophisticated pumping problems. Their sturdy design and optimum hydraulics permit application in:
- Power Stations
- Chemical Industry
- Process engineering
- Q= 2.800 m3/h
- H= 250 m
- P= 25/35 bar
- T= 150 °C
- axial suction nozzle, radial discharge nozzle
- foot-mounted
- casing > NW 80 of double-volute design
- reduction of axial forces
- low vibration – long service life
- back-pull-out version in connection with demountable coupling allows simple maintenance, volute casing and motor remain in initial position
- seal area acc. to API 610/682, suitable for a variety of seals
- standard version
- flanges according to ASME B16.5 for class 300 or 600 lbs
- exchangeable wear and guide rings enable easy maintenance and cost reduction
- dynamically ballanced impellers guarantee very smooth running
- robust shaft design meets all requirements of API-610
- grey cast iron
- ductile cast iron, ADI materials
- cast steel
- 12 % chromium steel
- austenitic steel
- special alloys
- Inducer is an additional upstream impeller of screw type which provides very low NPSH values
- Design of the inducers is selected according to specific application range of Customer.
- Vertical volute-casing pumps for wet or dry installation with most different submersion depth up to 8 m
- Shaft on drive side with robust pair of angular ball bearings of long lifetime running in the pump in maintenance-free slide bearings
- Slide-bearing locations are lubricated by means of liquid to be pumped via lubrication piping.
- Bearings with oil or grease lubrication, optionally we can provide bearing cooling.
