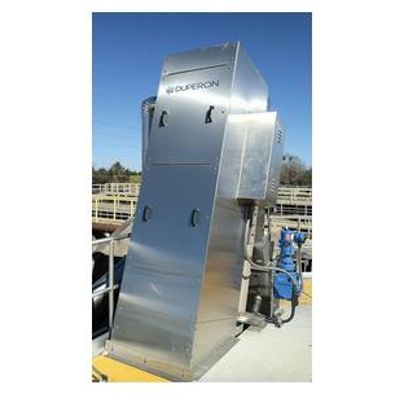

Duperon FlexRake - Model FP -Full Penetration Coarse Water Screen
The workhorse that set the standard for simplicity in the water and wastewater industry. The FlexRake® Full Penetration (FP) model offers multi-rake coarse screening for openings greater than ½ inch. It combines rugged Adaptive Technology from the FlexRake’s flood control origins and is specifically engineered to manage sticky or difficult-to capture debris, making it ideal for wastewater and industrial applications.
The FlexRake has evolved to meet the requirements of multiple industries. Wherever applied, it is a workhorse that just keeps running. The inherent value of the FlexRake is its simplicity: long product life, low cost of ownership, and adaptability to a range of site conditions (varied flows, debris types, and volumes). Duperon Corporation is continuously reinventing what is possible for simplicity in screening.
The FlexRake® FP is a front-clean, front-return, mechanically cleaned bar screen. It features the industry-leading FlexLink™ multifunctional link system, which eliminates underwater sprockets, bearings or tracks that create a fixed path of travel and are subject to fouling and/or jamming. The groundbreaking flex/pivot action of the Duperon FlexRake is unhampered by large debris.
The FlexRake FP is a course screen that utilizes individually replaceable, stainless steel, rectangular bars with ⅝ inch to 4 inch openings. The UHMW-PE Thru-Bar™ scrapers eliminate accumulation by cleaning all three sides of the bar and cross members to remove hard-to-capture debris.
Adapts to a range of unpredictable flow and debris conditions without operator intervention
Process resilienceEffective coarse solids removal through a broad range of flow and debris conditions so downstream assets remain protected
Reliable operationThe FlexRake FP adapts to handles grease, grit, first flushes, rags, large or unusual debris (2×4’s, bricks or sewer plugs) without shutdown or operator intervention
Low cost of ownershipWith few parts and minimal maintenance required, the FlexRake FP is easy to install, own, and operate
No in-channel maintenanceEverything is serviceable from the deck, eliminating confined space entries, jamming and routine in-channel maintenance
CustomizableEngineered to fit the unique needs of your site
Wastewater & Collection Systems Applications:
- Preliminary treatment
- Headworks
- Pump stations
- Lift stations
- Combined sewer overflows
- Prisons
Industrial Applications:
- Pulp and paper mills
- Food and beverage
Open Channel Applications:
- Power generation
- Raw water intakes
- And other applications where debris is highly variable or difficult-to-capture.
- Industry-leading FlexLink™ eliminates lower sprockets, submerged bearings and tracks
- FlexLink multifunctional link system has ultimate strength of 60,000 lbs with unmatched durability
- Full-Range Flexibility adapts to debris variations; from grit and grease to hard hats and sewer plugs
- Jam-Evasion™ Technology lifts or pivots to process large debris without shutdown or jamming
- High-capture Thru-Bar™ cleaning cleans all three sides of the bar and the cross member
- Fractional horsepower motors used for energy efficiency
- 5 year warranty for wastewater applications
- Everything is serviceable from the deck to eliminate in-channel maintenance and confined space entries
