C-Tech - Model SPT/DCP/PMT/DMT/CPT -Fully Hydraulic Dynamic Probing Rig on Crawler Chassis

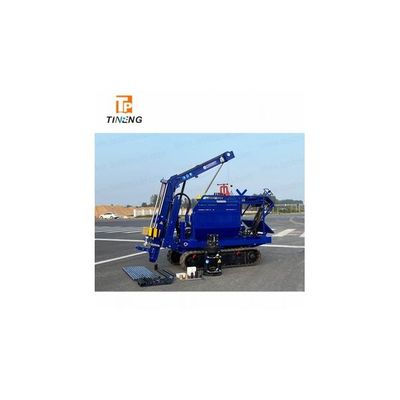

Fully Hydraulic dynamic probing rig on Crawler Chassis. Multi-functional dynamic probing rig on crawler movement system with hydraulic motor and folding mast, suitable for super-heavy dynamic probing and SPT too. The dynamic probing rig SPT-C can be used for soil-bearing capacity tests, compaction tests and for soil sampling. Dynamic probing standards DPL (10kg), DPM (30kg), DPH (50kg), DPSH (63.5kg) as well as SPT can be carried out.. Drop height can be varied between 500 and 750 mm by means of an adaptor bracket.. The crawler movement system is easy for transport. The dynamic probing rig SPT-C is driven by a hydraulic motor fed by a separate hydraulic power pack. . Furthermore the SPT-C version offers the vital advantage that the hydraulic power unit can serve a rod extraction unit as well.
-
1. The dynamic probing rig SPT-C is a highly functional soil investigation machine, easy to transport due to the folding mast feature.
2. It is versatilely suitable for working in confined spaces and is displaced in outdoor terrains.
3. The folding mast is used for easy transportation, it can control the lifting of the mast by the oil cylinder, adjust the lateral rotation, adjust the front and back, and fold the upper part of the mast
4. Dynamic Probing DPL, DPM, DPH and SPT.
5. Worktable with vice and large capacity storage boxes on both sides
6. Rod extraction function
7. Mechanical shock counter
