HORIBA - Model 510 Series -Gas Analyzers

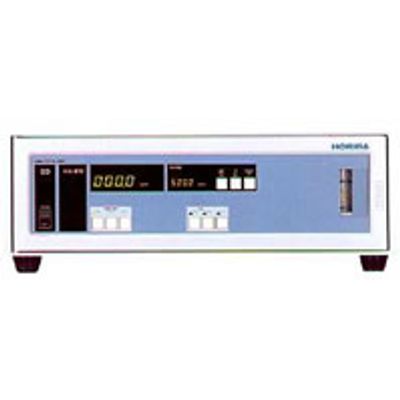

The 510 series can be used for a wide variety of analyses and tests, such as industrial process control and composition analysis, and fixed-source emissions monitoring. Each model is configured using one of four analyzers: the VIA-510 infrared analyzer, the CLA-510 chemi-NOX analyzer, and the MPA-510 O2 analyzer.

A high level of sensitivity is achieved through the use of a dual-beam NDIR, Chemiluminescence, and Magneto-pneumatic analysis methods. The NDIR analyzers use an infrared absorption method which offers superior sensitivity, selectivity, and stability. With the Magnetopneumatic analyzer, high-sensitivity measurements can be realized free of zero drift due to the use of N2 as the operation gas. The Chemiluminescence analyzers use a dryer unit equipped with automatic reseneation, so ambient air can be used as the source of O3. It also provides 7 ranges and a range of 1:100 (0-20/50/100/1000/2000ppm), making it easy to handle a wide variety of applications. These highly accurate, high performance analyzers are suitable for process monitoring and control.

• Selectable outputs: 0-1 VDC, 0-10 VDC, and 4-20 mA
• Digital outputs: range setting information.
• Digital alarms: indicate malfunctions or calibration failure.
• Digital inputs: Zero cal, Span cal, Data hold.
• Range inputs: 4 inputs BCD code.

Common specification in 510 series

• Configuration: Desk top or 19 " panel mount
• Ambient conditions: Temperature: 0 to 40 °C
  Humidity: 90% RH or less
• Power: 100 / 115 / 220 V DC, 0 - 10 V DC, 0 - 16 mA or 4 - 20mA DC, isolated
• Output signal: 0 - 1 V DC, 0 - 10 V DC, 0 - 16 or 4 - 20mA DC, isolated
• Display: LED digital display (effective 4 digits.)
• Dimensions: 430 (W) x 132 (H) x 550 (D) mm
  16.9 (W) x 5.2 (H) x 21.7 (D) in
• Sample gas requirements:
  • Dust: No
  • Mist: Completely removed
  • Pressure: More than 50 mm H2O
  • Temperature: Ambient temperature
  • Moisture: 5°C saturation or below
  • Flow rate: 500mL / min
  • Exhaust gas: Discharged at ambient pressure

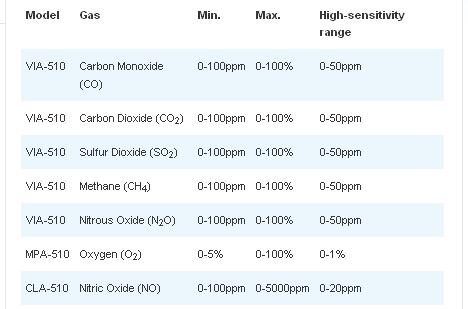

VIA-510

• Measureing method: NDIR
• Repeatability: ±0.5% F.S. (±1.0% F.S. for high-sensitivity range)
• Drift: ±1.0% F.S. per day (±2.0% F.S. per day for high-sensitivity range)
• Response time: 10 sec. (electrical)
• Operation gas: Not needed
• Calibration gas: Zero: N2 or Air, Span: Span gas
• Mass.: 15kg, 33 lb

MPA-510

• Measureing method: Magnetopneumatic
• Repeatability: ±0.5% F.S. (±1.0% F.S. for high-sensitivity range)
• Drift: ±1.0% F.S. per day (±2.0% F.S. per day for high-sensitivity range)
• Response time: 10 sec. (electrical)
• Operation gas: N2, Flow rate: 6 mL/min.
• Calibration gas: Zero: N2, Span: Span gas or Air
• Mass.: 15kg, 33 lb

CLA-510SS

• Measureing method: Chemiluminescence
• Repeatability: ±0.5% F.S. (±1.0% F.S. for high-sensitivity range)
• Drift: ±1.0% F.S. per day (±2.0% F.S. per day for high-sensitivity range)
• Response time: 10 sec. (electrical)
• Operation gas: Not needed (ambient air used)
• Calibration gas: Zero: N2 or Air, Span: Span gas
• Mass.: 20kg, 44 lb
