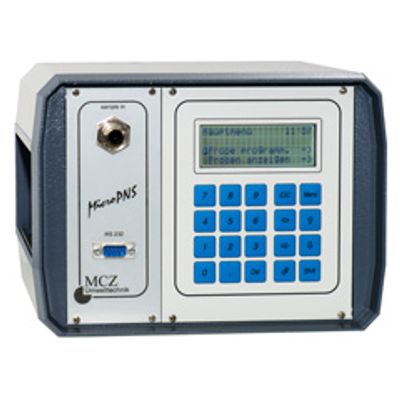

MCZ - Model MicroPNS -Gas Collector System
Control system for the automated collection of gases and particles on adsorption tubes, wash-bottles, or filters. Application areas include emission/immission measurements, TLV value monitoring, landfill gas sampling.
Most popular related searches
gas collector
landfill gas sampling
gas sampling
dust sampling collector
immission measurement
sequential sampling
dust collector
sample gas
gas sampling system
emissions monitoring
The control program has a modular structure and, with an optional sampling switching, can log up to 8 sequential samples (optionally up to 16). The control program is freely parameterized and allows fully automatic, unattended operation.
- Internal computer controls programs and physically calculates correct sampling volume
- Program sequences are controlled in real-time with internal clock
- Choose time or volume sampling
- Expandable with sampling switcher and different measuring heads
Case dimensions
19 inch tabletop case or rack mount
Gas flow
- with internal pump: 150 to 1,500 ml/min
- with external pump: up to 50 l/min
Drying
water separator/permeation dryer
Connected load
220 V 50 Hz (battery buffer for programs and log data)
Note
Accessories:
- adapter for different adsorption tubes
- different sampling heads matching the application scope
- switching module for up to eight (optionally 16) samples
