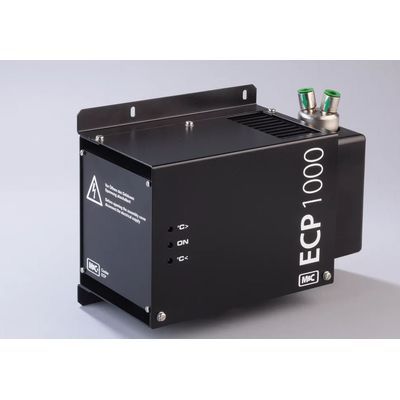

Peltier - Model ECP1000-SS - Gas Cooler

Peltier - Model ECP1000-SS -Gas Cooler

FromM&C TechGroup

SHARE

Electric gas cooler type ECP1000-SS with Peltier element, electronically regulated to +5 °C, high/low-temperature alarm with 2 changeover contacts, jet-stream heat exchanger out of SS 316 Ti for 1 x 150 Nl/h, connections: sample gas: G 1/4" i, condensate: G 3/8" female, power: 230 V/50 Hz or 115 V/60 Hz to switch over. One gas path, max. flow: 150 Nl/h, different materials of heat exchangers, power: 115/230 V, 60/50 Hz.

Most popular related searches

peltier gas cooler

gas analysis device

gas conditioning

condensate analyzer

Peltier gas cooler with 1 Jet-Stream heat exchanger made of stainless steel
Gas flow rate: max. 150 Nl/h
Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
With a total cooling capacity of 50 kJ/h at +25 °C [+77 °F] ambient temperaure
Ambient temperature up to +45 °C [+113 °F]
With status alarm contact
Compact and lightweight design
Power: 115/230 V switchable
Explosion-proof: No
Cooling: Peltier
Temperature: > 2 °C [> 28.4 °F]
Gas paths: 1
Flow rate/gas path: 150 Nl/h
Material: Stainless steel
Power supply: 110?120 V 220?240 V

The ECP 1000 gas cooler is used in gas analysis technology to lower the dew point of humid gases to avoid condensation in the analyzer. An extremly stable gas dew point prevents water vapor cross-sensitivity and volumetric errors.
