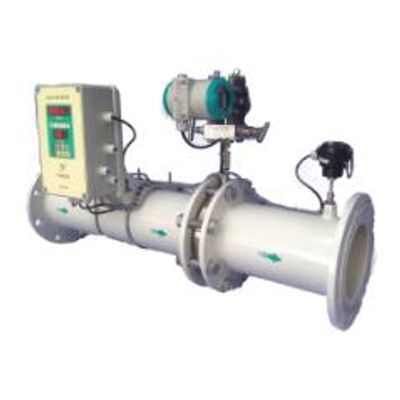

Manas - Model GFMc-150 - Gas Flow Meter

Manas - Model GFMc-150 -Gas Flow Meter

The GFM-150 flow meter is applicable for measuring flow rates of Bio-gas, LPG, Compressed air, and other compressed gases in closed conduits. It is best suited for applications where affordability, reliability, and ruggedness are of prime concern.

Most popular related searches

flow meter

differential pressure flow meter

Size: 1 inch to 8 inch
Type of flow element: Differential flow element
Accuracy: ±2.5% of actual reading
Typical turndown: 10:3
Density compensation: Online monitoring and compensation of density
Communication protocol: MODBUS, RTU
Communication port: RS485, RS232 (optional)

Engineering & Automation
Textiles
Chemical/pharmaceutical
Food & Drugs
Petrochemicals
Fertilizers
Steel/ Aluminum
Sugar Factories/Distilleries

Brand: manas microsystems
Mounting: Wall/Panel
Max depth: 185mm
Accuracy: ±0.25% of Full Scale
Data logging: Approx readings: 3000 for normal logging &Approx 5500 readings for extended logging
Power supply: 85 to 265V AC,50Hz, single phase
Pressure range: 1 to 50 kg/cm2 (g) or Bar (g) max.-programmable
Flow type: Compensated/Uncompensated programmable
Enclosure: Al Diecast/ABS Plastic
Comm. Port: RS485 std., RS232 (Optional)
Density Compensation: Online monitoring and compensation of density
Dimensions WM Type: 310 (L) x 160 (W) x 105 (D)
Dimension PM Type: Bezel-144mm (H) x 72mm (W) cutout-138mm (H) x 68mm (W)

Manas - Model GFMc-150 -Gas Flow Meter

Features

Applications

Products Details
