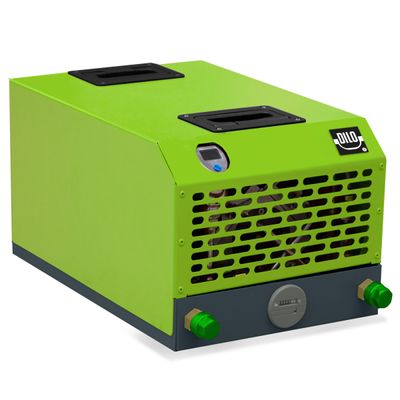

DILO - Model C4-B093R30 -Gas Recovery System
The MINI SERIES C4 is perfectly suited for efficient gas handling of small gas compartments and gas recovery down to < 5 mbar. It is specially provided for the handling of gas mixtures (Alternative Insulating Gases). The handy individual MINI components for recovery, consisting of a compressor and a vacuum compressor, are connected to the unit via wire-braided hoses.Most popular related searches
gas recovery
gas recovery system
gas mixture
solenoid valve
pressure sensor
vacuum solenoid valve
digital pressure sensor
gas insulated
anthracite green
anthracite
Technical data:
- Dimensions: Length 510 mm, Width 325 mm, Height 290 mm
- Weight: 24 kg
Standard equipment:
- Vacuum compressor for recovery of gas mixtures (3.3 m³/h [at 50 Hz]; 3.9 m³/h [at 60 Hz], fi nal vacuum < 5 mbar)
- Solenoid valve
- Pressure sensor
- Digital vacuum indication (0 - 400 mbar)
- DILO couplings DN8
- Electric control
- 2 m long electrical connecting cable
- Paint: green-anthracite
Special features
- Gas type: C4-FN
- Gas recovery: < 5 mbar
- Operation: manuell
- DILO couplings: DN8
