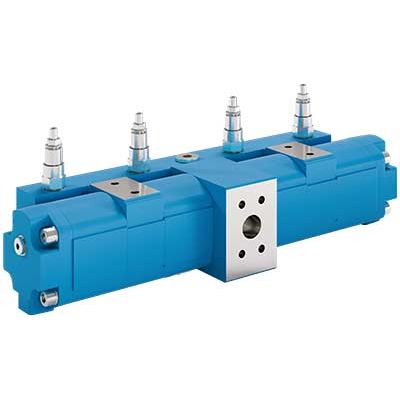

KRACHT - Gear Flow Divider for Hydraulic Systems

SHARE
The gear flow divider is a hydraulic component used for efficient distribution of pressure and flow within a system. It divides or sums a total volumetric flow evenly or in a fixed division ratio, irrespective of the consumer pressures. With a displacement volume range of 5.5 to 25 cm³/rev and an operating medium temperature up to 90°C, this component can withstand continuous pressures up to 250 bar. It is particularly suited for mobile and stationary systems, including construction and agricultural machinery, municipal and specialty vehicles. The robust construction and proven design make it a reliable solution for diverse division tasks. Optional features include pressure relief valves and the capability to couple multiple KM motors, accommodating up to six motors. This ensures versatility in its applications and integration into various hydraulic systems, enhancing efficiency and performance while maintaining durability under rigorous operating conditions.
Most popular related searches
pressure relief valve
relief valve
municipal vehicle

GEAR FLOW DIVIDER

The flow divider is a hydraulic component. It is used for the efficient distribution of pressures and flows. It divides or sums a total volume flow evenly or in a fixed division ratio. The consumer pressures play no role in this. The flow divider is a proven solution for various division tasks due to its structural design.

  • Displacement: 5.5 … 25 cm³/rev
  • Media temperature: … 90 °C
  • Continuous pressure: … 250 bar
  • Mobile and stationary systems
  • Construction and agricultural machinery, municipal and special vehicles
