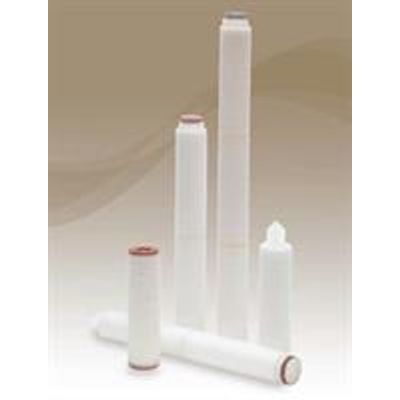

Shelco MicroVantage - Model MAS-G Series -General Grade Polyethersulfone Membrane Filter Cartridges
FromShelco Filters
Specifically designed for reduction of bacteria and spoilage organisms in beverage applications.. Asymmetric, hydrophilic polyethersulfone membrane filter. Absolute retention from 0.1 to 1.2 microns. Manufactured in a Class 10,000 clean room for high purity. 100% flushed and integrity tested to ensure rated pore size. High surface area for maximum throughput and long service life. Suitable for steam or autoclave sterilization and hot water or chemical sanitization. Constructed of FDA listed materials and meets USP Class VI Biological Test for plastics.
Most popular related searches
membrane filtration cartridge
membrane filtration
polyethersulfone membrane filtration cartridge
filter cartridge
biological testing
cleanroom environment
membrane cartridge filter
cleanroom
integrity monitoring
filter membrane
- Absolute retention ratings from 0.03 to 1.2 microns
- 7.2 square feet (0.67 m2) of media surface area per ten inch length for high throughput and longer service life
- Fully integrity tested to ensure reliable performance in critical applications
- 100% flushed with 18 megohm DI water for low extractables
- Manufactured in a Class 10,000 Clean Room environment for high purity
- Polypropylene hardware offers wide range of chemical compatibility
- Rigid, molded cage protects pleated media and strengthens structural stability
- Complies with Food & Drug Administration’s CFR criteria for food & beverage contact
- Meets USP Class VI Biological Test for plastics
- Available in standard lengths and end cap configurations to fit most filter housings
- Produced up to 40 inches in length (10 inch modules)
- RO Pre/Post Filtration
- Food & Beverage
- DI Water
- Bottled Water
- Plating Solutions
- Microelectronics
- Specialty Chemicals
- Process Water
- Water & Wastewater
- Cosmetics
- Pore Sizes 0.03, 0.1, 0.2, 0.45, 0.65, 0.8, 1.0 and 1.2 microns
- absolute retention
- Nominal Lengths 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm),
- 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter 2.67" (6.78 cm)
- Inside Diameter 1.0" (2.54 cm)
- Media Surface Area 7.2 sq.ft. (0.67 m2) per 10 inches filter length
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)
- Materials of Construction
- Filter Media: Asymmetric Polyethersulfone
- Outer Cage Polypropylene
- Inner Core: Polypropylene
- End caps: Polypropylene
- Maximum Operating Temperature 176°F ( 80°C)
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Maximum Differential (Collapse) Pressure
- 75 psid @ 70ºF (5.2 bar @21ºC), 40 psid @176ºF (2.8 bar @ 80ºC)
- Sanitization and Sterilization
- Hot water at 175ºF (80ºC) at 5 psid for 30 minutes
- In-line steam at 257ºF (125ºC) @ 1 psid (0.7 bar) for 30 minutes
- Autoclavable at 257ºF (125ºC) for 30 minutes
- FDA and USP Compliance
- All polypropylene materials comply with the requirements of
- Food and Drug Administration Title 21 of The Code of Federal
- Regulations 174.5, 177.1520 and 177.1630. All components meet current USP Class VI biological tests for plastics
