General - Model TB -Large Vapor Phase Adsorbers

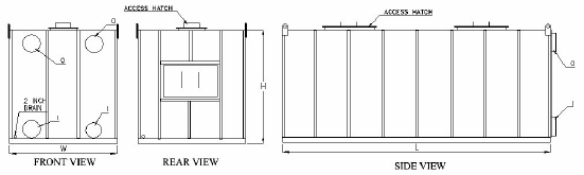

General Carbon’s TB-Series Adsorbers are engineered for high airflows using large amounts of carbon. These adsorbers are fabricated from mild steel and come in four sizes. Each vessel is coated inside and out with 2-part epoxy paint. A three foot bed depth gives good contact time and a large amount of carbon for a long service period. The TB-Series are designed for temporary or permanent placement where the carbon is changed out onsite. Large access panels provide easy entry for service. Options include connections for sampling, drains, instrumentation, fan and ductwork packages. These units are available for lease or purchase. Complete design, mobilization/demobilization, spent carbon change out and reactivated services are available.

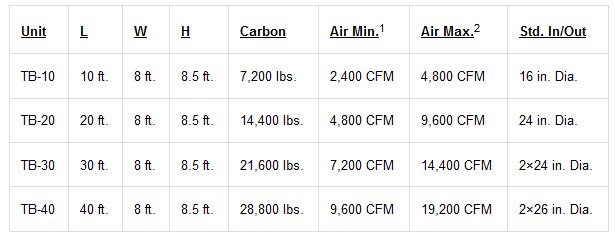

1Minimum flow rated at 30 fpm/f2.
2Maximum flow rated at 60 fpm, may be exceeded with caution.
CAUTION!
Wet activated carbon removes oxygen from air causing a severe hazard to workers inside carbon vessels. Confined space/low oxygen procedures should be put in place before any entry is made. Such procedures should comply with all applicable Local, State, and Federal guidelines.
