Gilson - Heavy Duty 1/16 Sample Reducer

Gilson - Heavy Duty 1/16 Sample Reducer

FromGilson Company, Inc.

SHARE

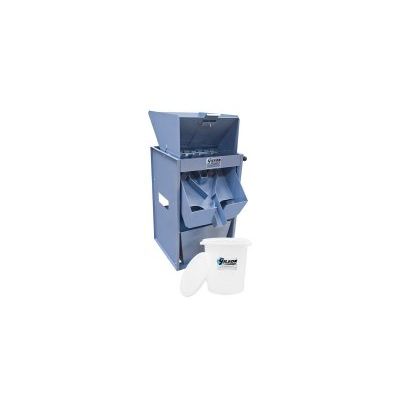

SP-52 features a hopper with four times more sample capacity than traditional reducer models. A spring-loaded positive-locking knob quickly adjusts the flow table to 45° or 60° dividing positions. The 1.0ft³ (28L) hopper has a fully-adjustable sliding gate for precise control of flow rate. The gate can also be locked open for continuous flow-through. The SP-52 is especially useful for sample preparation and dividing of proppant materials for hydraulic fracturing operations. Sturdy welded all-steel construction stands up to heavy use. A rugged steel waste pan is included.

Most popular related searches

slide gate control

sample dividing

sampling container

sample preparation

Features:

Spring-loaded positive-locking knob adjusts to 45° or 60° dividing positions
Fully-adjustable sliding gate allows precise control of flow rate, or can be locked fully open for continuous flow-through
Integral frame/floor stand positions the divider at the optimum height for loading and operation
Sturdy painted-steel welded construction
Flow table leaves minimal sample residue behind after use

Included Items:

SP-52 Gilson Heavy Duty 1/16 Sample Reducer
Sturdy welded steel Waste Pan

Optional Accessories:

Additional SPA-115 Waste Pan
SC-20 Polyethylene Sample Container

Meets Standard(s):

AASHTO T 248 , ASTM C702 , ISO 13503-202996 , API RP19C

Specifications

Dimensions: 22 x 28.5 x 41in (559 x 724 x 1041mm), W x D x H
Estimated Shipping Weight, lb (kg): 80 (36)
