Glosfume - Modular Gas Filter
Glosfume filters are a modular design and exceptionally compact, which makes them avaliable to the most constricted locations. As well as the versatility of bespoke systems, our range includes three standardised modular pods (HTMC 256, HTMC 400 AND HTMC 600) rated from 3000 Am3/hr to 7500 Am3/hr. The footprint of our filters falls comfortably within existing height restrictions for UK planning and transportation to and from the UK. Our filtration systems can consist of either single pod or multiple pods.
Our design allows individual pods to be isolated, which in turn enables online monitoring and effective maintenance.
Filter bodies are CFD modelled to create even distribution of particulate and gas flow which enhances dry scrubbing.
Bespoke filters
Glosfume has the ability to offer custom built filters. If required these can be manufactured in various grades of steel. Total seal is also available with limitations in sizes.
All filter bodies up to the weight of 2000kg are manufactured in-house, filters above 2000kg are manufactured by an approved fabricator.

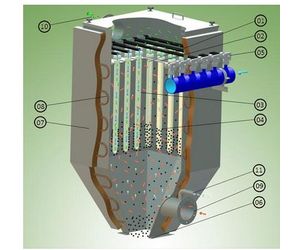

How it all works:
- The Element (1) hangs vertically from header plate (2) within the filter vessel. The header plate separates the filter`s clean and dirty compartments.
- Hot Gas is drawn through the filter medium (3) from outside to inside.
- Particulates and dry scrubbing sorbents are collected on the outer surface (4) of each filter element. These consist of the PM10, PM 2.5 size ranges; these agglomerate.

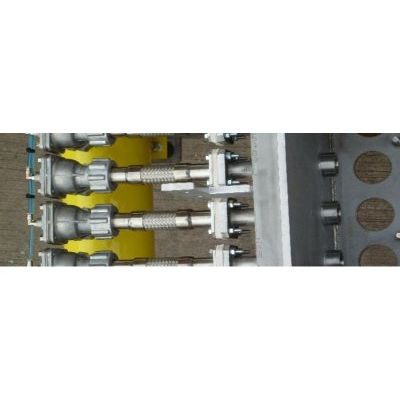

- The particles are removed from the element by reverse jet cleaning (5). This reversal causes the accumulated solids to be detached from the outer surface of the ceramic filter elements.
- The particulates and spent dry-scrubbing sorbents are discharged through the hopper outlet (6) for collection and disposal.
- The filter body can be protected with insulation (7) and trace heated (8) to prevent the formation of the condensation when the equipment is not in use.
- Incoming gas stream (9) and sorbent (if required).
- Outgoing cleansed gas stream (10)
- Injection point for activated carbon and/or sodium bicarbonate.
