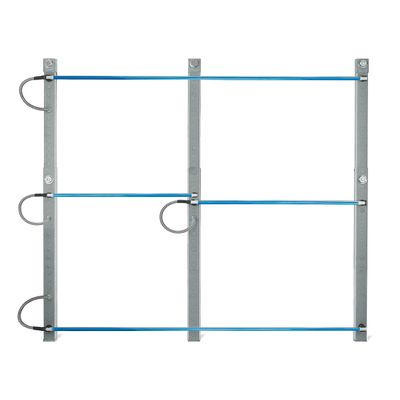

UVDI - Model V-MAX -Grid Coil Cleaning - Designed for medium-to-large Air Handling Unit installation
Flexible and Simple Installation: Scalable design to meet any plenum size; Lamps can be easily mounted on vertical supports; Ballast is designed to easily mount in vertical support strut; Negligible pressure drop; Low power consumption with universal voltage; Available in 21”, 33”, 48” and 61” lamps
- Rated for temperature 30°F — 135°F (-1°C — 57°C)
- RH: up to 95% non condensing
Regulatory Approvals
ETL listed to UL/Canadian standards:
- UL 1598/CSA 22.2 250
- UL 1995/CSA 22.2 236
- UL 153/CSA 22.2 12
Healthy Air Supply
UV energy destroys bacteria and mold that grow on the moist coil and drain pan surfaces eliminating “blow-off” of these into the air supply. This ensures that clean airflow is cooled by the coil without cross contamination.
Better Comfort
Coil disinfection prevents biofilm accumulation on fins resulting in effective heat transfer with better temperature and humidity control.
Energy Savings
Maintaining a coil free of microbial growth will maximize coil heat transfer efficiency and reduce energy consumption up to 15% in some systems.
Reduced Maintenance Cost and Less Downtime
UV energy ensures the cooling coil remains clean at all times, eliminating costly coil cleaning maintenance and reducing system downtime.
