Pista, Works - Grit Removal System Retrofit

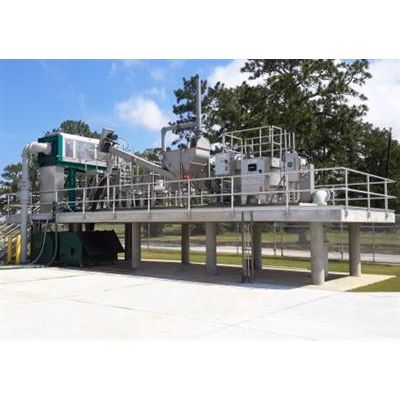

The custom-engineered PISTA WORKS is fully automated with a PLC-based control system and equipped with an integrated screening system for solids retention, PISTA 360 Grit Chamber for grit removal, PISTA TURBO Grit Washer to receive the mixture of water and grit from the PISTA Grit Concentrator and clean the grit while minimizing the odor caused by putrescible organics. Also included in the package are two platforms for convenient equipment access.

The PISTA WORKS is a complete system design that allows for significant flow variations (patented V-FORCE BAFFLE), has a compact footprint, and provides a speedy and efficient installation. As with all Smith & Loveless products, PISTA WORKS delivers the lowest life-cycle costs, is made in the USA, and all the equipment is of stainless steel construction for years of dependable service.

Model - Maximum System, Flow Capacity

• 0.5B: 0.5 MGD (1,890 CMD)
• 1.0B: 1.0 MGD (3,785 CMD)
• 2.5B: 2.5 MGD (9,460 CMD)
• 4.0B: 4.0 MGD (15,140 CMD)
• 7.0B: 7.0 MGD (26,500 CMD)

• Skid mounted headworks package
• Complete system design and compact footprint
• Pre-assembled and shipped, virtually eliminating  construction costs
• All equipment components constructed of stainless  steel for years of dependable service
• Utilizing multiple patented technologies including  PISTA 360 with V-FORCE BAFFLE and PISTA  TURBO Grit Washer
• PISTA TURBO Grit Pump
• Designed to minimize maintenance costs and  maximize the service life

• ANSI flanged connections
• Influent trough with slide gate
• OBEX Spiral Fine Screen, down to 3mm
• Manual Bypass Bar Screen
• PISTA 360 Grit Chamber with patented V-FORCE BAFFLE
• PISTA TURBO Grit Pump
• Two platforms for easy equipment access
• Ni-Hard PISTA Grit Concentrator
• PISTA TURBO Grit Washer featuring TRI-CLEANSE TECHNOLOGY
• Integrated disposal hopper for screenings and grit
• PLC-based control system with touch screen, color HMI interface and NEXA 4X panel to operate the entire system
• Epoxy-Coated carbon steel skid supports the complete system & is filled with concrete
