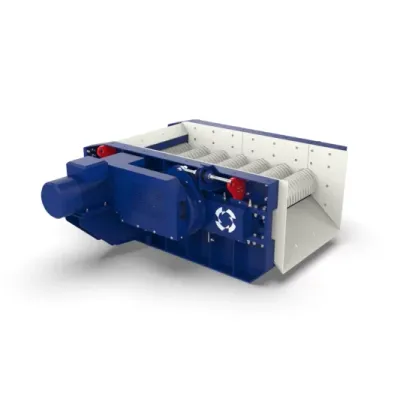

BaioniModel GD -Grizzly Wobbler Feeder for Pre-Screening

SHARE
The GD Grizzly Wobbler Feeder series by Baioni serves as an effective solution for pre-screening and cleaning sticky, wet materials with high clay and moisture content. This heavy-duty piece of equipment is engineered with exclusive non-clogging, self-cleaning elliptical bars and a robust frame. It comprises roller-holder shafts affixed with grease-lubricated bearings and interchangeable armors, facilitating maintenance and durability. Driven by an electric motor and a reduction gear unit, the system uses chains lubricated with oil to transmit power, ensuring seamless operation. Grooved rollers positioned oppositely create grid openings for effective material passage, and their unique shape induces a wave motion that optimizes the material's cleaning process. This wave action also prescreens the material, preparing it adequately for subsequent crushing stages. The GD series is recognized for its unique conceptual design that ensures product cleanliness and efficiency.
Most popular related searches
  • Robustness
  • High versatility
  • Easy maintenance

Exclusively designed non clogging and self cleaning elliptical bars it is a sturdy machine suitable for heavy-duty work. Recommended for pre-screening and cleaning of dirty material with a high content of clay and moisture. GD wobbler feeder consists of a frame, onto which some roller-holder shafts are fixed with grease lubricated bearings.

The machine has interchangeable armors in case of wear. The transmission is driven by an electric motor, a reduction gear unit and a series of chains with oil bath lubrication. Grooved rollers are mounted opposite one another to create openings forming a kind of grid for the passage of waste material. The special shape of the rollers on the surface of the machine causes a wave motion allowing the material to clean the rollers.  Thanks to the wave motion, the material is submitted to a pre-screening. The GD wobbler feeder series, thanks to the unique concept design and mode, allow to achieve a sufficiently clean product; output products will be suitable for next crushing stage.
