Safe-Direction Rhino-Stop - Guardrail Safety Barrier
RHINO-STOP Guardrail, developed by Safe Direction, combines the strength of w-beam guardrail with energy absorbing RHINO-Posts. The yielding behaviour of the RHINO-STOP® baseplates absorb vehicle impact energy, reducing the peak loads transferred to the anchor bolts. The deflection of the system allows for greater load transfer to the adjacent posts, sharing the impact load from the vehicle.

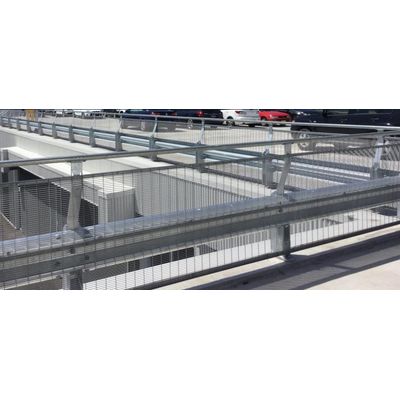

RHINO-STOP® Guardrail provides an economical crash barrier solution for shielding elevated parking areas and may be configured with handrail and mesh infill providing pedestrian fall protection. The fully modular system uses off-the-shelf components facilitating rapid supply and installation and can be customised on site to suit specific project dimensions.
Crash test evaluation:
- Impacts performed on the perimeter edge of 150mm thick elevated concrete slab
- 1500kg Passenger Car travelling at 15km/h & 90 degrees, impacting 0.5m above ground level
- Complies with the 30kN vehicle impact load (Type F) described in AS/NZS 1170.1, Clause 3.8
- Standard post spacing – 2.0m centres
- Available with a handrail attachment increasing system height to 1100mm
- Available with a sight rail attachment increasing system height to 1300mm
- Available with mesh infill providing pedestrian fall protection
- Number of anchor bolts per post – 1 off
