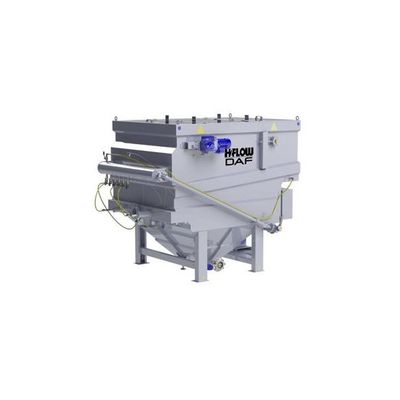

H2Flow - Model Delta Series -Dissolved Air Flotation (DAF) System

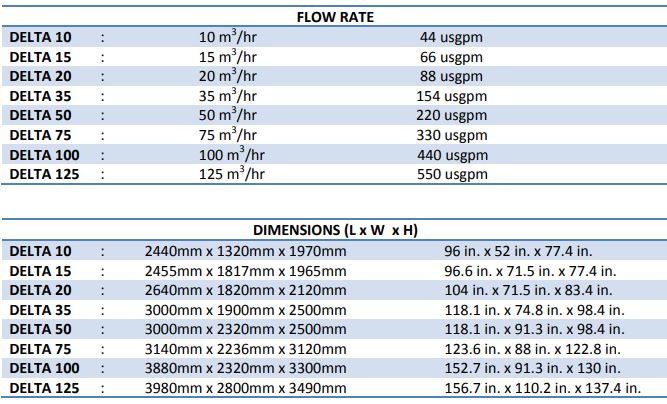

The Delta flotation units are designed to treat wastewater with light to medium solids loading. The capacity of the Delta unit ranges from 44 usgpm to 550 usgpm (10 to 125 m3/hr). The Delta series are designed to treat the wastewater using a Platepack System. The Platepack System multiplies the separation surface for effective separation, making it possible to treat a large amount of wastewater on a small footprint. The solids float to the surface and are collected by the sludge rake mechanism and transported to the sludge hopper with a low friction scraper system. The collected sludge is transported with a sludge pump to a sludge tank or dewatering. The Delta+ flotation unit is equipped with a sludge conveyor for discharge of heavy solids.
- Suitable for light to medium polluted wastewater
- Very compact design, small footprint compared to capacity
- Platepack System for optimum separation performance
- Low maintenance low friction skimmer system with internal sludge collection chamber
- Adjustable double length weir tray
- Efficient air/water saturation system
- Completely manufactured out of stainless steel
Construction Details
- Skimmer Drive Model: NORD
- Auger Drive Model (Optional): NORD
- Recycle Pump Model: Regenerative turbine or centrifugal pump
- Bottom Valve: Keystone or equal
- Stairs and Sidewalk (Optional): L-Shape, 800 mm width
Electrical and Controls
- Power Supply: 230V, 480V or 575V, 3 phase, 60 Hz
- Recirculation Pump: Qty. 1 duty, standby optional
- Pneumatic Panel: 24 VDC
- Local Control Panel: Optional
Material of Construction
- DAF Tank: 304 SS, optional 316 SS
- Static Sludge Thickener: 304 SS, optional 316 SS
- Skimmer System : SS with fiberglass blades
- Chain: Plastic
- Chain Wheel: Plastic
- Recirculation Pump: Stainless Steel with SS shaft and impeller
- DAF Cover (Optional): Plastic or SS
- Lifting Lugs: 304 SS, optional 316 SS
- Dissolved Air Make Up System: Stainless steel
- Aeration Valves: Fiberglass
- Pneumatic Panel: Body cast iron GGG-50, disc 316 SS, seal EPDM
- Bottom Valve (Butterfly): Galvanized Steel
- Stairs and Sidewalk (Optional): Galvanized Steel or fiberglass
