OxyGuard - Model Polaris C TGP -Hand-held Gas Pressure Handy

FromOxyGuard International A/S

SHARE

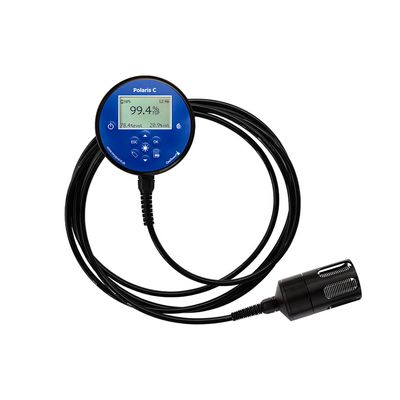

The OxyGuard Polaris C TGP (Total Gas Pressure) is a hand-held gas pressure Handy. It can operate in three modes, one where it acts as a standard Handy Polaris dissolved oxygen (DO) meter, one where it is a total gas pressure meter that shows pressures as percent saturation values and one where it is a total gas pressure meter that shows pressures as volume percentages. The user can choose which value is shown in large figures in the display. This can, for example, be the percent saturation value for gases other than oxygen. The instrument incorporates a data logger. Messages on the display, and menu functions, make the Polaris C TGP easy to use.

Most popular related searches

barometric pressure

dissolved oxygen meter

temperature probe

electrochemistry

Units of measure: Total Gas Pressure: %TGP, Residual gases by volume (%rvol): Residual gases by saturation (%rsat), Oxygen: ppm (mg/L), % sat. Temperature: Celsius (°C),Fahrenheit (°F)
Display: Graphical LCD display with variable backlight
Types of probes: Oxygen probe: Electrochemical, Pressure probe: Self-compensating for hydrostatic pressure
Cable length: Standard 3 meters / 10 ft. By request, available at any length up to 100 m / 328 ft
Operating temperature: Probe: -5 to +45 °C / -23 to +113 °F, Meter: -20 to +60 °C / -4 to +140 °F
Meter water resistance: IP67-rated, allowing short-term immersion up to 1 m / 3 ft
Response time: To 90% in less than 20 seconds
Measuring range: Total Gas Pressure: 0-100%, Residual gases: 0-200% rsat, Oxygen: 0-60 (mg/L) and 0-600% saturation. Temperature: -5 to +45 °C / +23 to +113 °F
Measuring accuracy: Typically ± 1% of the measured value. Temperature: ± 0.2 °C / °F
Data logging capacity: 3000+ sets of data with unlimited unique NFC tag references
Compensation ranges (manually set): Salinity 0-59 ppt
Automatic check of: Probe function, meter function, cable and battery
Automatic compensation: Temperature and barometric pressure (300-1200 mBar)
Dimensions meter: Length = 98 mm / 3.86”. Diameter = 36 mm / 1.42”
Dimensions probe: Length = 110 mm / 4.33”. + cable gland. Diameter = 58 mm / 2.28”
Power: Single-cell Li-Ion battery pack with integrated battery protection circuitry. Nom. 3.7V, max. capacity 9Wh. UN38.3 certified
Battery life: Up to 57 days of typical use (2 hr/day)
