Hasler - Trucks Scales

Hasler - Trucks Scales

FromHasler Group

SHARE

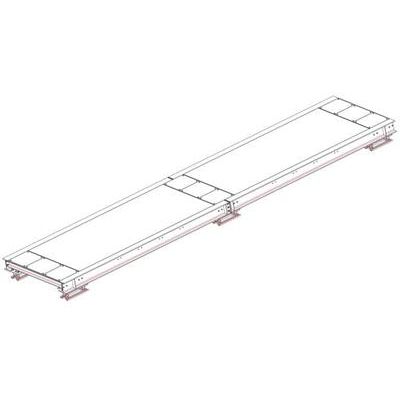

The platform consists of steel elements which are manufactured by customer locally according to manufacturing drawings and part lists as well as bumpers cable tubes, water drain pipe, and necessary covers etc. The screwed frames are poured out with concrete at site by customer and the ready bridge is placed on a concrete foundation with or without pit. The platform is based on 6 or 8 load cells which are connected to a terminal box. Via a screened measuring cable, the load signal is transmitted to the weighing controller TSC60. HASLER provides the dimension drawings for the foundation which is built by customer on site.

Most popular related searches

load cell stainless

Truck scale Modules : 2 or 3 modules
Width of weighbridge : 3.0m (several lenghts avalaible)
Controller : TCS-60
Certifiable weighing range : 100t – 50kg (minimum division)
Non certifiable range : 100t – 20 kg (maximum division)
Weighing range 120t – 60t
Local manufacturing
Layout with Pit or Pit less

1 Truck loading software
- truck filling software or inlet and outlet ingoing and outgoing software
Fieldbus : RS 232 / RS485 / PROFINET
1 needle printer epson LX 100 or compatible
Cable to link connection box on weighbridge to Controller TSCG (Type LiYcY)

HASLER Scope of supply :

Load cells stainless steel

Max. capacity : 40t
Protection class : IP 68
OIML R60 and NTEP : approved
Accuracy class acc. : OIML R 60. C3
18m of cable / load cell

Load cell connection cable

Lenght to be defi ne according to site feature
Housing : Stainless steel for desk-top or wall-mount installation
Protection class : IP 65
Power supply : 93 – 264VAC / 47 – 63Hz
Display : TFT color display, 320x240 pixel
Keyboard : Keypad with 62 keys, includingt :
- Function keys
- Application-specific function keys
- Numeric and alphabetic keyblocks
Processor 32-bit ARM Processor, 266 MHz
Loadcell interface : 4 - or 6 wire type, 6000 parts appropriate for verification, 50-400 measurements/sec.
Language : English, German, French, Russian other languages on request
Fieldbus : PROFIBUS DP / ETHERNET
Operating temperature: -10 to + 40 °C
