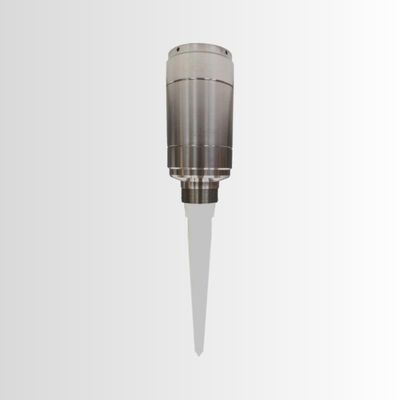

ABM - Model R-HPR -High-Pressure Radar Level Sensor

The R-HPR pulse radar level sensor is the ideal solution for liquid, slurry or solid level applications in high pressure processes. The radar sensor is suited for challenging environments with vapours, gases, foaming or volatile surfaces.

• High pressure processes up 70 bar (1015 psi)
• Measuring range up to 100 ft (30 m)
• Non-contact continuous level measurement
• Self-cleaning, maintenance free operation
• Plug-and-play installation with simple calibration
• Remote monitoring and virtual support with optional Cellular Gateway

Learn more about the R-HPR radar level sensor here.

Industries

• Water & Wastewater
• Chemical
• Petrochemical
• Food & Beverage

Applications

• Process tank level and control
• Inventory level in storage tanks

Radar level sensors are the ideal solution for level measurement of liquids and solids when dealing with challenging environments such as vapour, temperature variations, extreme temperatures, extreme dust, wind, foam, ice or acoustic noise.
ABM offers various radar level sensors to match your application. Our radar sensors are a one echo sensor. The sensors automatically adjust their transmitted energy and receiver sensitivity to get the same amplitude of wanted echoes regardless of the distance to radar, which allows a very narrow radiation beam and very short blanking. This technique allows the receiver to detect only one echo from the measured media while all false echoes are pushed under the noise level and eliminated.

Learn about about our non-contact radar level sensors here.
