econ industries services GmbH

- Model HTTU - High Temperature Treatment Unit

From

0

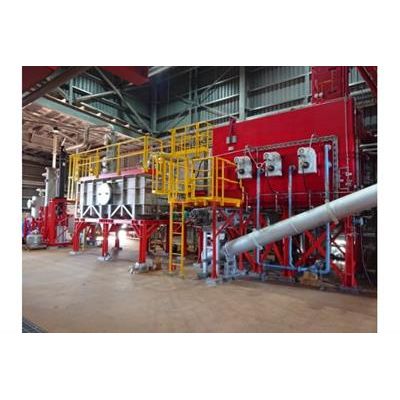

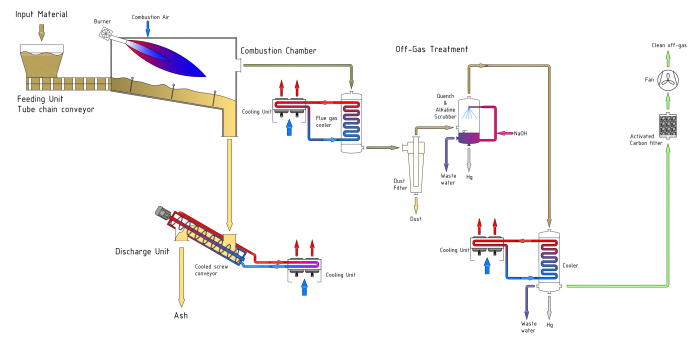

The econ High Temperature Treatment Unit is a continuous process designed for the treatment of catalysts and activated carbon contaminated with mercury, mercury sulphide (HgS), sulphur, and hydrocarbons. The HTTU uses a direct fired thermal oxidation technology for the high temperature (700 - 1000 °C) destruction of mercury compounds and oxidation of sulphur and hydrocarbons. During the process, the material is continuously mixed to ensure homogenous quality. The treated catalysts are discharged and cooled down. After the treatment, the mercury-free catalysts can be sent to downstream metal reclamation. The off-gas is treated in several treatment steps to remove dust, mercury, and S02 from the off-gas stream. An activated carbon filter ensures the emission limits are met at all times. The wastewater generated in the off-gas treatment is treated in a three-step filtration process in which the mercury is removed prior to discharge into the sewage system.

  • Removal of metallic mercury and all mercury compounds (e.g. HgS)
  • Removal of sulphur - cost-effective metal reclamation in downstream processes
  • Throughput between 100 - 5,000 kg/h - local treatment or large-scale treatment centre possible
  • Highly efficient dust filter - no dust in off-gas treatment unit - no production of mercury or wastewater sludge
  • Turn-key delivery in modular design
  • Design standards according to EN, ASME, GOST-R or individual specification

  • Feeding unit
  • Thermal treatment unit
  • Discharge unit
  • Off-gas treatment
  • Cooling unit
  • Optional: Wastewater treatment unit
  • Control unit
