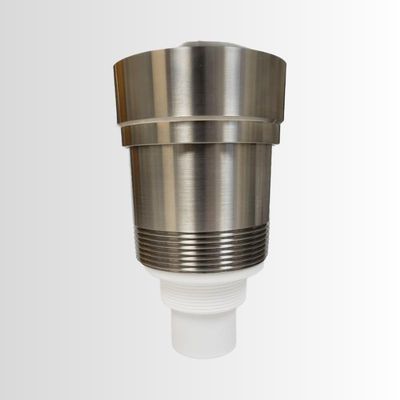

ABM - Model UL-HT -High Temperature Ultrasonic Level Sensor
The UL-HT ultrasonic sensor from ABM is the ideal solution for liquid level applications in high temperature processes. The sensor is designed with a Teflon transducer that withstands process temperatures up to 266°F (130°C). The non-contact ultrasonic sensor provides continuous level measurement up to 90 ft (27.4 m) with 4-20 mA output standard and simple push-button calibration.The UL-HTP ultrasonic level sensor is the ideal solution for liquid level applications in high temperature processes.
- High temperature applications up to 266°F (130°C)
- Corrosion resistant Teflon transducer
- Measuring range up to 90 ft (27.4 m)
- Non-contact continuous level measurement
- Self-cleaning, maintenance free operation
- Plug-and-play installation with simple calibration
- Remote monitoring and virtual support optional
Learn more about the UL-HTP ultrasonic level sensor here.
Industries
- Water
- Petrochemical
- Food & Beverage
- Chemical
- Petrochemical
Applications
- Process tank level and control
- Inventory level in storage tanks
Ultrasonic level sensors are the ideal solution for level measurement of liquids and solids. ABM offers various ultrasonic level sensors to match your application. Our self-adjusting sensors continually monitor conditions in the environment and automatically adjust the transmitted energy, transmitted pulse amplitude and it’s duration, and receiver sensitivity to match to the current tank conditions. This technique allows the receiver to detect only one echo from the measured media while all false echoes are pushed under the noise level and eliminated.
Learn more about our non-contact ultrasonic level sensors here.
