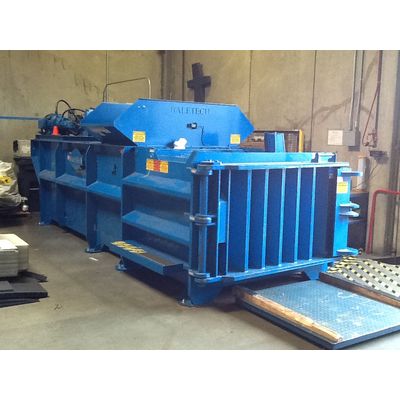

Baletech Scout - Model 4060 -Horizontal Baler

• 3/8” Thick Full Sheet Construction
• Hydraulic Door Cylinder
• 25 HP Tri-Volt 3 Phase
• Guide Wire Tie Tracks
• Multiple Use Shear Blade
• High Efficiency Hydraulic Assembly with Regenerative Hydraulics
• Thick Interlocking Sidewall Mounting
• Construction
• Stroke Saver Cycle Feature
• NEMA 4 Rated Enclosures
• Standard Hopper
• Full Weld Construction
• Large Feed Hopper
• Logic Controlled Operation
• Dual Level Photo Eyes
• Air to Oil Cooler

• Conveyor Control Package
• Custom Colors
• Thermal Oil Heater
• Bobcat Feed Hopper
• Conveyor Feed Hopper
• Maintenance Program Available

Structural

• Hopper Opening 60” W x 52” L
• Feed Chamber 54” W x 40”L
• Chamber Floor Full Sheet Construction
• AR LinedChamber Sidewalls 3/8” Thick Full
• Sheet Construction
• Shipping Weight 18,000 Lbs. Shipping
•  Weight (8,164 Kg

Performance Data

• Main Cylinder 8” Bore x 96” Stroke x 5” Rod
• Door Cylinder 4” Bore x 6” Stroke
• Oil Reservoir 100 Gal
• Pump 43 Gal. Gear Pump (162 LPM)
• Motor TEFC 25 HP - 480 Volts 3 Phase
• Hyd. System Pressure 3,000 PSI (207 Bar)
• Force 150,000 Lbs.
• Platen PSI 83 PSI. (6.0 Bar)
• Cycle Time Adjustable 34 Sec - 18 Sec Stroke Saver
• Bale Size 60 x 30 x 48

Baler Dimensions

• Height 4.75’ (1.45 m)
• Frame w/Standard Feed Hopper 7.25’ (2.21 m)
• Width 6.67’ (2 m)
• Length 17.5’ (5.4 m)

• OCC
  • Up to 1,200 Lbs. ( 737Kg)
• Office Paper
  • Up to 1,625 Lbs. (737 Kg)
• News
  • Up to 1,500 Lbs. (817 Kg)
• Magazines
  • Up to 2,000 Lbs. (907 Kg)
• PET
  • Up to 700 Lbs (480 Kg)
• HDPE
  • Up to 900 Lbs (454 Kg)
• Aluminum Cans
  • Up to 700 Lbs. (363 Kg
