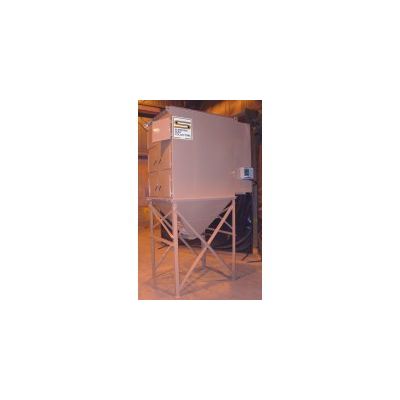

Scientific Dust Collectors - Model SC -Horizontal Cartridge Dust Collector

FromScientific Dust Collectors

SHARE

The (SC) Horizontal Cartridge Collector is Scientific Dust Collectors` newest line of Cartridge Collectors. The SC is an economical yet heavy duty pulse-jet cartridge collector. It features a fully welded construction (not bolted together), a downward airflow, and utilizes the patented supersonic nozzle cleaning system. Cartridges are secured with a removable-hinged acces door for quick and easy cartridge changeouts.

Most popular related searches

cartridge dust collector

horizontal cartridge dust collector

dust collector cartridge

differential pressure gauge

dust cartridge collector

discharge hopper

pulse jet collector

12 gauge steel bin and hopper with reinforced construction
Zinc oxide primer on all surfaces with an exterior finish of industrial enamel (color is tan or gray)
One full set of Duratex II cartridges (99.99% efficiency)
Housing designed for ± 17 IWC
Patented nozzle based cleaning system with solid state pulse timer board prewired in NEMA 4 enclosure (110 V)
Differential pressure gauge with dust trap and connecting hardware
Lifting lugs for easy movement and installation
All units designed and finished for outdoor use
No tool cartridge removal
All welded construction
Designed for 100 MPH wind and Zone 3 seismic loads
55° reinforced hopper with square flanged discharge
Hopper discharge clearance of 42”, sized for slide gate and 55 gallon drum adapter
