IMC - Auto Feed Waste Station

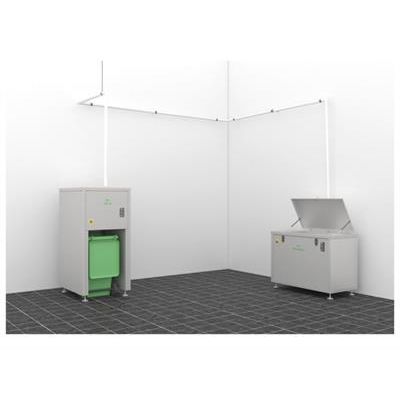

The Waste Station AF builds on the compact inlet station, and allows more than the single bucket feed of the WasteStation and WasteStation CR. Food is emptied into the collection chamber and auger feed into the maceration chamber. The macerated waste is then automatically fed into the remote dewatering system which reduces the volume by up to 80% and mass by up to 60%. The bulk loading and remote dewating feature of the Autofeed ensures maximum efficiency in busy kitchens.
Most popular related searches
waste station
water flow rate
water flow rating
dewatering system
water supply
waste management
food waste
waste collection
dewatering
macerator
- Food waste from the hopper is automatically auger fed directly into the built-in macerating chamber.
- The macerated waste is then automatically fed into the remote dewatering system which reduces the volume by up to 80% and mass by up to 60%.
- Pumping range of up to 55 metres.
- Capacity of 200 Ltrs
- Greater utilisation of staff, as many buckets can be discharged in a short time.
- Cleaner kitchen area as waste is transported directly away into a dedicated waste collection area.
AutoFeed
- Electrical Supply 3 phase 400v 50hz
- Macerator motor 2.2kW
- Pump motor 1.1kW
- Pumping Distance 55m (Max)
- Amps 13.5 amps
- Water Supply 2 x 3/4" BSP Cold + 1 x 3/4" BSP Hot
- Water Flow Rate 12-30 l/m
- Capacity 200 Litres
Remote Dewater
- Dewater motor 1.1kW
- Drainage connection 2”
- Self cleaning option YES
- Water supply 1 off ½” hot / warm
- Amps 5.5 5.5
- Drainage connection 2 “ UPVC waste
Dimensions
- AutoFeed
- Height 1300
- Width 1300
- Depth 1000
Remote Dewater
- Height 1876
- Width 839
- Depth 1055
