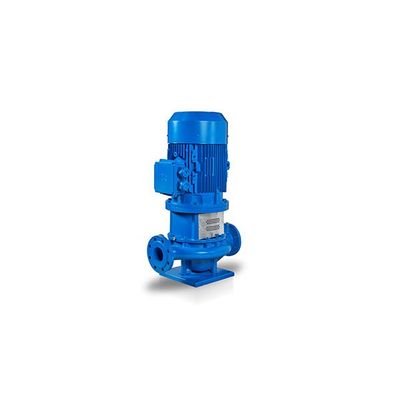

Masdaf - Model INM -In-Line Centrifugal Pumps
Design: Single stage in-line type centrifugal pumps are produced with standard motors and mechanical seal. Pump flanges are designed in PN 16 pressure category compatible with DIN 2533. The suction and discharge flanges are identical and are on the same axis. Both flanges are equipped with pressure gage tapings. Single entry, closed impeller is equipped with rear rings to balance thrust and is dynamically balanced.
Most popular related searches
inline centrifugal pump
centrifugal pumping
inline pump
centrifugal pump
mechanical seal pump
swimming pool water
seawater pumping
seawater pump
water circulator
water pump
- Motor is connected to the pump by an adaptor and a flange.
- Motor shaft is joined to pump shaft by a special clamp. In the case of motors with power over a certain value the pump and the motor shafts are joined by separate rigid coupling.
- Pump shaft, motor and other parts can be removed without replacing the suction and discharge flanges and the pump volute. Thus, assembly and maintenance procedures are carried out very easily
- Standard asynchronous motor is used to activate pump.
- In NMM pumps shaft leakage is prevented by a mechanical seal. All radial and thrust forces are supported by the motor bearing.
- Suction Flange: DN 40...DN 250
- Discharge Flange: DN 40...DN 250
- Operating Pressure: 10 Bar
- Casing Test Pressure: 13 Bar
- Working Temperature: -25 – 120°C
- Flow Range: 2 – 520 m³ / h
- Head Range: 2 - 105 m
- Speed Range: 900 – 3600 rpm
Water supply and pumping stations.
- Irrigation , sprinkling, drainage processes.
- Tank systems.
- Hot-cold water circulation in cooling systems.
- Pumping of condensed water.
- Swimming pool water circulation.
- Industrial and social installations.
- Fresh water and sea water pumping in ships.
