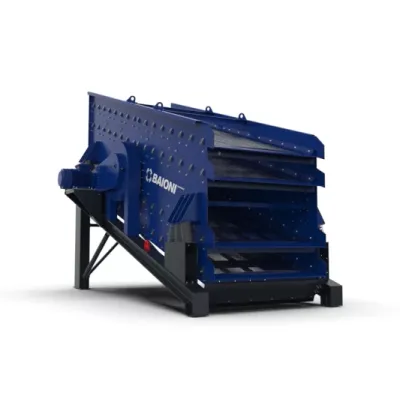

Baioni - Model V -Inclined Vibrating Screens for Aggregate Sizing and Washing
Inclined vibrating screens by Baioni display a robust and compact design that ensures reliable performance for sizing and washing aggregates. These screens, available in V (one shaft) and VV (double shaft) series, are versatile for both fine and coarse classification across diverse productions. They feature a screen deck casing supported by springs and are equipped with a rotating shaft driven by a patented system. This system utilizes mass displacement to generate a variable eccentric, which facilitates controlled start-up and stopping phases without unwanted vibrations. The screens allow for exact vibration intensity regulation and incorporate an automatic belt tensioning system for optimized operation. Their high efficiency makes them suitable for a wide range of materials, enhancing aggregate quality during screening. Moreover, a washing system with spray sprinklers can be added to facilitate comprehensive aggregate processing.
- Very robust and compact design
- Accurate regulation of the vibration intensity
- Highest screening efficiency
They are equipped with an internal mechanism through which a mass, urged by a centrifugal force generated by the rotation, moves freely from the center towards the periphery. The displacement of this mass creates a “variable eccentric” which, during the start-up (acceleration), put the casing in motion and, during the stop (braking), slows down the movement without generating unwanted vibrations.
This system allows to obtain high performance with an excellent selection of quality aggregates. – wide and accurate regulation of the vibration intensity; – constant belt tension through an automatic regulation system of the pulley. – high production with an excellent selection quality of the aggregates.
