Plexus IWS Remote - Model R-025Ix3 Series -Industrial Current Monitor Remote Wireless System
The Intelligent Wireless System (IWS) nodes comprise of a range of distributed wireless products from Plexus Controls providing advanced supervisory, control and data acquisition (SCADA) functionality for commercial and industrial applications. With `out the box` auto mesh wireless functionality, IWS nodes can be easily installed at a remote location and connected to standard sensors, supporting 4-20mA, 0-5V, 0-10V, HART, temperature, power factor, pressure and many other interfaces. Either through a direct wireless connection or automatically hopping through a series of repeater IWS nodes, the sensor data is relayed back to the IWS Gateway for termination over Ethernet to the IWS Management Server application providing a web based GUI display, logging and alarm management.

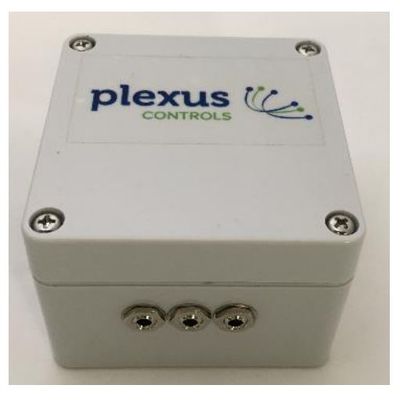

The Remote Termination Unit R-025Ix3 is a fully integrated, self-contained radio and microcontroller package supporting 3 x Current Transformer (CT) inputs to monitor current draw on 3 phase equipment. The R-025Ix3 is powered using 2 x Alkaline dry batteries that can be easily changed by the user, or through the 110V wall adapter (supplied). The R-025Ix3 enclosure is designed to mount on a flat surface. The frequency of readings can be user changed and values logged and plotted on Plexus controls browser based gateway system. Plexus also provided an SQL database package that allows more sophisticated packages to access the data for detailed analysis.
The R-025I3 can be powered by internal 2 x C Alkaline batteries (not supplied). Battery life is expected to be up to 3 years depending on the frequency of the reading cycles.
- Next generation distributed, intelligent wireless SCADA system
- Voltage Transducer input
- True RMS current measurement
- Integrated (shown) or external long range antenna
- Battery (2 x C cell) or wall adapter powered
- Mounts on a flat surface next to the load isolator box or service fuse panel
- Reliable & scalable auto mesh wireless (using repeater system if required)
- Multiple systems per gateway
- Full monitoring, alarming from site gateway and/or central SQL database
