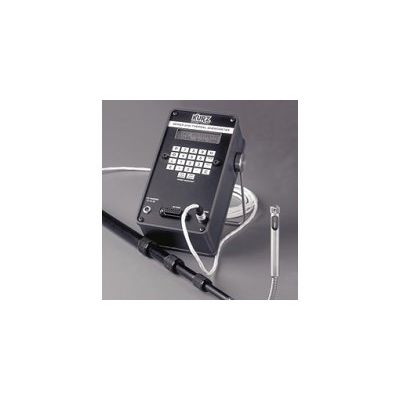

Kurz - Model 2442 -Industrial HVAC Portable Flow Meter
The Model 2442 has been specifically designed for HVAC Applications, such as air velocity traverses, air balancing and other tasks. It has a unique flexible `gooseneck` section between the sensor element and the sensor support, as well as an easily extendable telescopic wand which allows measurements at the ceiling height. The `gooseneck` section can be bent to 90° so that the user can orient the sensor element perpendicular to the air velocity direction when making traverses of air supply grates or open area. The Model 2442 uses the same `CD` sensor used for the Model 2441, except that it is mounted into a 3/8` diameter sensor window/support. The sensor is completely protected when the telescopic, four-segment wand is collapsed. The telescopic wand is 47` long when fully extended.
- Easy-to-use menu for display and set-up with HELP screens.
- Two-line 16 character, back-lit LCD with twenty button keypad.
- User selected scrolling display.
- Twenty-four hour clock/calendar, Year 2000 compliance (four digit year).
- Two optically isolated loop-powered 4-20 mA outputs. User selected for velocity, flow rate or temperature (optional).
- 1500 Point Data Memory for recording traverses and other measurements.
- User selected English or Metric units (SFPM, SCFM, SCFH, PPM, PPH, 7; SMPS, SLPM, SCMH, KGM.KGH/C).
- Multi-Point calibration correction factors for Flow and Temperature.
- User-entered METER ID Numbers.
- User-entered flow area.
- User selected low velocity cut-off.
- User selected Reference Conditions (STP).
- User selected digital time constants for each METER.
- Built-in flow totalizers and elapsed time.
- User Access Code.
- User selected RS-232C or RS-485 Serial port for
- terminal operation (optional).
- CE Compliance meeting the European Community requirements for EMI emissions and immunity.
- Configuration upload/download using a PC.
- Wlocityflemperature/Mapping (VTM) for wide ranging, process velocity and temperature (optional).
- Nickel-Metal-Hydride 4.5 AH High Performance battery
- Battery Charger, 100-240 VAC, 50/60 Hz.
- Exceptional Temperature Compensation.
- Flash EEPROM program for user firmware upgrades.
- Velocity range of 12,000 SFPM.
- Temperature rating of 125"C.
- Pressure rating of 150 PSIG.
- Exclusive flexible "gooseneck" sensor tip and telescopic extension wand.
- Fastest response to temperature and velocity changes available.
- Attitude insensitive.
- Sensor lead length independent.
- All components pass an extensive burn-in test for high reliability.
- Optional Modbus local area network with a read-only control set (Trademark ot Square D Company).
- Electronics operating temperature range of -25`C to +65"C, non-condensing.
- Low velocity sensitivity
- 25% Repeatability.
- Accuracy of ±3% Reading plus 10 SFPM.
- Rugged, strong, dependable.
- Internal and External Data Logging.
- Industrial Hygiene
- OSHA
- Clean Rooms
- Survey Tests
- Duct and Pipe Flow Traverses.
- HVAC Supply and Return Ducts, Grills and Diffusers.
- Flow Balancing.
- Research and Development.
- Light Industrial Flow Measurements.
- General Purpose Air Flow Testing.
- Combustion Air Flow Measurements
- Fume Hoods
