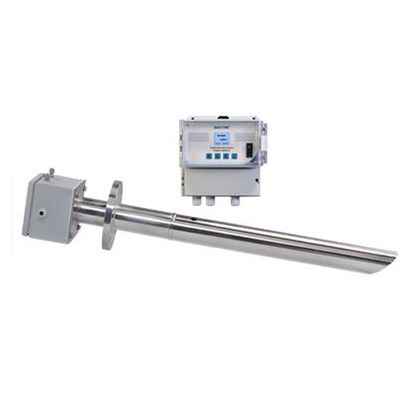

Agasthya - Model 2013 Series - BI 2100-S -Insitu Zirconia Oxygen Analyzer

BI 2100 is best solution for small boilers manufacturer with reasonable cost. It can be customize to integrate with various process & site conditions. With no moving parts or sampling apparatus, the analyzer is extremely reliable.

Zirconia sensor is very rugged & can withstand high temperature & pressure with life cycle more than 5 years.

Online calibration can be performed during operation. The available mode of calibration are Auto Cal. & Manual Cal.

BI 2100 series is field repairable. All active components can be replaced, including the filter, sensing cell & electronic card.

Insitu Oxygen Sensor Specification

• Range 0-100% 02 Programmable
• Accuracy ±0.5% of FS
• Resolution 0.01%
• Repeatability ±0.5% of FS
• Response Time T90<3sec
• Process Gas Temperature 0-700°C
• Probe MOC StainLsss Steel
• Diffusion Element Unbreakable Ceramic. Sintered Steel filter as optional
• 02 Probe Length 250, 500, 750,1000, 1500, 2000 mm
• Flange ANSI CI. 150 3RF. Other Flanges on request
• Reference Air Clean & Dry Instrument quality air (2 LPM)
• Area Classification Safe Area. (Explosion Proof on request.)

02 Electronic Unit Specification

• Display Keypad LCD Display
• Power 24 VDC. 230 V AC optional on request
• Output 4-20 mA Analog Output & 3 Nos. Relay Output
• Digital Interface R5 465, Modbus protocol
• Ambient Temperature 0 - 65° C
• Mounting Wall. Rack optional on request.
• Enclosure Rating IP65
• Calibration Auto & Manual
• Cable between Sensor & Electronic 4 core, 25 meter
