Trelleborg - Model 160 -Integrated Seal for Concrete Manholes

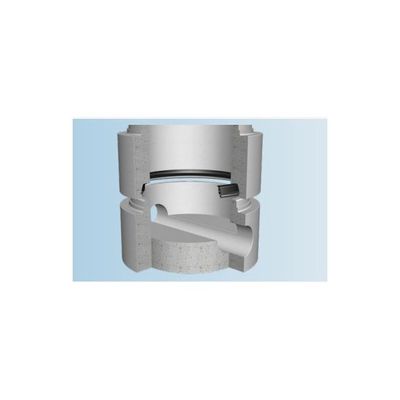

Trelleborg 160 Integrated Manhole Seal is a one-piece integrated seal that is cast into the socket during manhole manufacture. It is specifically designed for use with the spigot design according to DIN V 4034-1.
Most popular related searches
concrete manhole
seal integrity
manhole
manhole sealing
sealing system
stormwater manhole
manhole system
security seal
concrete pipe
sewer manhole
- Sealing part, made of soft rubber, (40 IRHD) is a combined lip and compression seal. The soft rubber has excellent flexibility to take up irregularities in the spigot surface.
- Retaining sections are cast into the concrete during pipe manufacture and secure the seal in the correct position.
- Slurry lips seal against the base ring (pallet) pre venting concrete ingress during manhole manufacture. The lips are made of soft 40 IRHD rubber which gives an excellent seal between seal and base ring.
- Integrated seal for concrete manhole systems using DIN V 4034-1 spigot design
- Easy to centre during jointing
- Compatible with standard spigot with shoulder
Trelleborg 160 Integrated Manhole Seal meets or exceeds the requirements of all current relevant European standards including the FBS demands.
- Synthetic rubber EPDM
- Dual hardness
- Sealing part 40±5 IRHD
- Forming part 63±5 IRHD
- Approved in accordance with EN 681-1
- Protected against ozone
