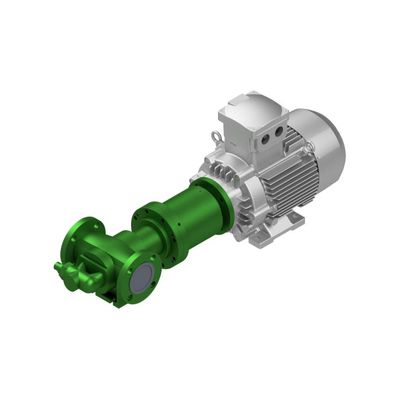

Dickow Pumpen - Model Type GMB -Internal Gear Pump With Magnetic Coupling

Type GMB is an internal gear pump with magnetic coupling. The pump has only two moving parts, the impeller and the rotor. The pump is always equipped with an easily adjustable safety valve (bypass). The pump has a permanent magnet coupling, and the containment shell hermetically seals the fluid to the outside. An internal circulation current dissipates the heat generated by the eddy current losses. The bearing of the pump shaft takes place in plain bearings. The direct mounting of a drive motor eliminates additional bearings and the mechanical coupling. The position of the nozzle is both angled and opposite possible.
