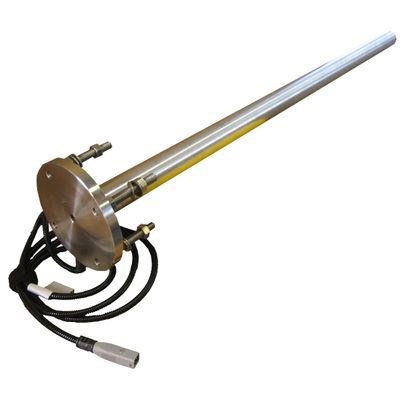

JCT - Model JER-EH -Heated Sampling Pipe
Applications: For extractive gas analysis. For emission and process monitoring. For avoidance of acid dew point lower deviaton between sampling point and gas sampling probe. Combinable with gas sampling probes JES-301 and JES-301L.
Most popular related searches
gas sampling probe
sample gas probe
gas sampling
sampling probe
Pt100 temperature sensor
sample gas
digital temperature controller
temperature sensor
gas probe
gas analysis
- Sampling without influence on the sample gas
- No corrosion due to condensate formation
- Homogeneous heating of interior and exterior pipe to 180°C due to even temperature distribution across the whole heat conductor length, independent of the operating conditions
- Easy mounting
- Pre-filter and extensions adaptable
- No temperature sensor necessary with HTI-16
- Pt100 temperature sensor with JTC-308
- Illuminated temperature display
- Corrosion resistant double shell pipe with internal heating
- Heating failure monitoring with alarm contact and indication
- Mounting directly at the standard process flange
- Tube length of 500 to 2000 mm available
- Controlled heating up to 180°C
- Electronic temperature controller with temperature display
- Controller for wall mounting or directly mounted at the sampling tube (option)
- Electrical connection with plug connection STAS200 for temperature controller HTI-16 or turn-key mounted with JTC-308
