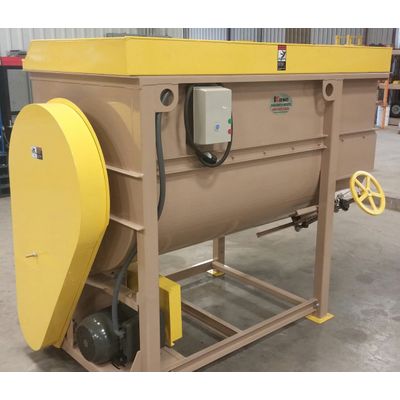

Kase Horticulture - Model 3424 -Batch Mixer - 2-Yard
The 2 Yard Mixer offers medium to large batch mixing capabilities within the 3/16” plate steel barrel. It is ideal for heavier soils, and heavy duty options are available depending on your media type. The unit comes standard with a removable barrel and handwheel discharge gate. It is also available with 10HP or 15HP motor, and custom options, including integral direct drive or chain & sprocket drive, are available.
Most popular related searches
batch mixer
safety grating
mixing system
slide gate
magnetic tank gauge
water piping
water pipe
thickness monitoring
soil blending
- Paddle auger design that gently lifts and blends soil material
- Water spray pipes to moisten mix
- Standard safety grate with splash guard for employee protection
- Heavy duty construction for years of service
Model: 3423 Batch Mixer – 2 Yard
- Soil Capacity: 2 cu. Yard
- Overall Height: Adjustable
- Overall Length: 94″
- Overall Width: 73″
- Hopper Length: 78″
- Discharge: End Slide Gate
- Discharge Height: 23″ up to 45″
- Discharge Time: Appx. 3 Minutes
- Capacity: 12-16 cu. yds/hr
- Drive: 7 1/2 HP TEFC
- Electrical: 1 PH / 230 VAC Optional 3 Phase
- Starter: Magnetic
- Tank Thickness: 10 Gauge / Opt. 3/16″ PL Abrasive Resistant
- Shipping Weight: 2200 lbs.
