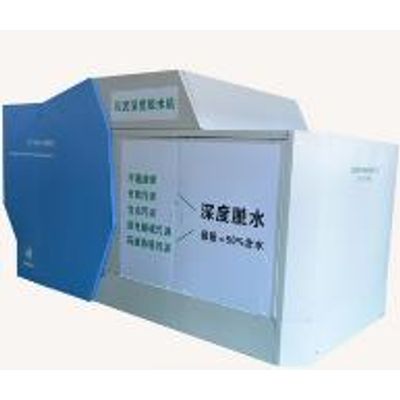

Kintep - Model KTDS - Low Investment No Clogging Sludge Dewatering Machine
From Dense-Phase Belt Type Sludge Dehydrator
KTDS depth dewatering machine has low pressure, medium pressure, high pressure and super high pressure four filter areas, KTDS depth dewatering machine has low pressure, medium pressure, high pressure and super high pressure four filter areas, filter actions are controlled by pneumatic components automatically, frequency motor speed controlled by output and moisture content, this filter device has changed the sense of traditional sewage coagulation filtration paste filtration directly.
Working Principle
By chemical modified conditioning treatment of sludge moisture with 80%, then dewater in high pressure, reduce the moisture to below 60%, the sludge goes through by two tension filter upper and down, it dewaters rely on the tension of the filters itself and pressure between them, then obtain high solid content mud cake, so to realize sludge dewatering.
Features
It can dock with the exit of raw sludge, without further configuration, seamless connection as zero distance, transportation and pollution, it takes few minutes from feedstock to mudcake outlet, so to achieve the aim of uninterrupted production, it doesn’t need to reserve yard, greatly reducing the investment, operation cost and environmental damage of sludge disposal process.
Advantages
Simple operation, low operation cost, sludge can be repaid dehydration by filter after modification, no clogging, perfectly processing the oily and fiber sludge.
Selling Points
- Belt material: Nylon, polyester
- Inlet sludge humidity: 85%
- outlet sludge humidity: <60%
- Operation: Automatic
- Handling cost/ton: ~10 USD
- Modifier: Yes
