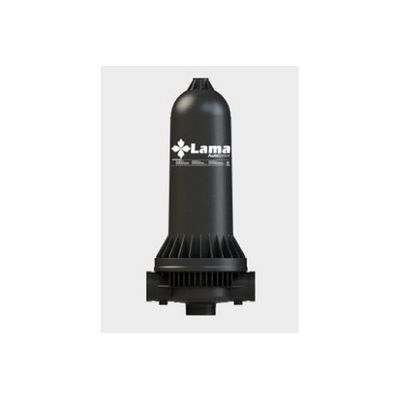

LAMA AutoSenior - Automatic Disc Filter
Autosenior features total rotation of the disc package during washing. It is manufactured in glass fibre reinforced polyamide and its components need no maintenance (except for the discs). Thanks to the patented design of its cover the closure is simple and easy to handle. The hexagonal shape morphology of its tower-structure support with equidistant holes ensures consistency in the washing of the entire surface of the filter discs.
Autosenior LAMA features total rotation of the disc package during washing. It is manufactured in glass fibre reinforced polyamide and its components need no maintenance (except for the discs). Thanks to the patented design of its cover the closure is simple and easy to handle. The hexagonal shape morphology of its tower-structure support with equidistant holes ensures consistency in the washing of the entire surface of the filter discs.
3” filter Vic connection.
Available discs:
Standard disc 190 microns
LAMA manufactures parallel discs with different opening sizes: 20 µm in green, 50 µm in blue, 130 µm in yellow, 190 µm in red and 250 µm in brown.
Carbon steel components are treated externally and internally by nanotechnology and the application of a base primer. They are then painted by electrostatic spraying, with epoxy polyester powder paint.
Construction materials
Body: glass fiber reinforced polyamide.
Disc tower: glass fiber reinforced polyamide.
Manifolds: high quality carbon steel or polyethylene.
Joints: synthetic rubber nitrile 60º Shore.
Screws: zinc-coated.
Industrial applications: filtration and water protetion process in industries such as steel mills, mining, refinery, food and agriculture , textile, plastic, paper industries …
